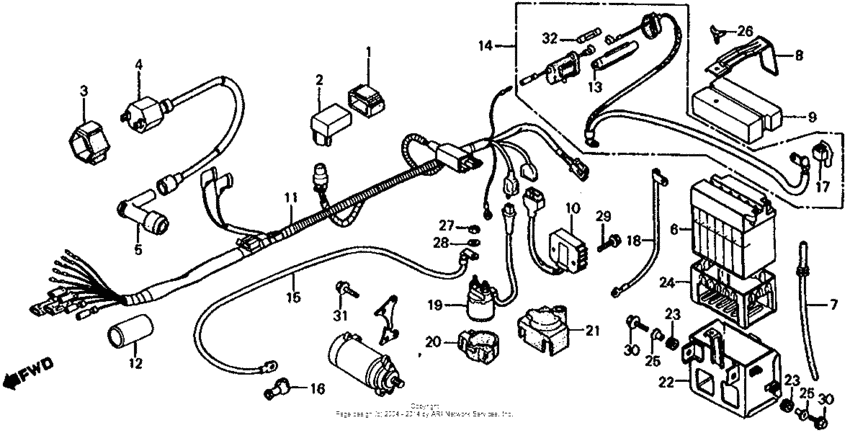

Wire harness Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE050*FC000005 - JH3TE050*FC046927
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30401-KB4-000 Cushion |
30401-KB4-000 |
from US $5.18 |
||
|
2
|
2
30410-969-013 C.d.i.unit |
30410-969-013 |
from US $164.56 |
||
|
3
|
3
30506-VM6-000
Suspension
|
30506-VM6-000 |
— | ||
|
4
|
4
30500-VM0-000
Coil assy,ign
|
30500-VM0-000 |
— | ||
|
5
|
5
30700-GJ5-010
Cap assy.
|
30700-GJ5-010 |
— | ||
|
6
|
6
31500-968-013AH Battery (yb9a-a) |
31500-968-013AH |
US $76.55 |
||
|
7
|
7
31502-VM6-405
Tube
|
31502-VM6-405 |
— | ||
|
8
|
8
31512-968-000
Holder, battery box
|
31512-968-000 |
— | ||
|
9
|
9
31513-968-000
Cover, battery
|
31513-968-000 |
— | ||
|
10
|
10
31600-VM6-000
Reg.rect.comp(dc)
|
31600-VM6-000 |
— | ||
|
11
|
11
32100-VM6-000
Wire harness
|
32100-VM6-000 |
— | ||
|
11
|
11
32100-VM6-305
Wire harness
|
32100-VM6-305 |
— | ||
|
12
|
12
32103-VM6-000
Cover, connector
|
32103-VM6-000 |
— | ||
|
13
|
13
32111-230-000 Case, fuse connector |
32111-230-000 |
from US $4.88 |
||
|
14
|
14
32401-VM6-000
Cable, relay battery
|
32401-VM6-000 |
— | ||
|
15
|
15
32402-VM6-000
Cable, starter motor
|
32402-VM6-000 |
— | ||
|
16
|
16
32411-230-000 Cover |
32411-230-000 |
from US $5.33 |
||
|
17
|
17
32412-471-000 Cover, battery terminal |
32412-471-000 |
US $4.20 |
||
|
18
|
18
32601-VM6-000 Cable |
32601-VM6-000 |
US $29.50 |
||
|
19
|
19
35850-HA8-771 Switch assy.,statUse up to Frame SN FC042008 |
35850-HA8-771 |
US $92.31 |
||
|
20
|
20
35856-425-000 Rubber |
35856-425-000 |
from US $5.92 |
||
|
21
|
21
35857-969-000
Cvr, magnetic switch
|
35857-969-000 |
— | ||
|
22
|
22
50325-VM6-010
Box, battery
Use up to Frame SN FC040741 |
50325-VM6-010 |
— | ||
|
23
|
23
50329-968-000
Rubber
|
50329-968-000 |
— | ||
|
24
|
24
50334-968-000
Rubber, battery
|
50334-968-000 |
— | ||
|
25
|
25
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
25
|
25
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.07 |
||
|
25
|
25
61105-428-000
Collar, rr. fender
|
61105-428-000 |
— | ||
|
26
|
26
90105-958-405
Bolt, wing
|
90105-958-405 |
— | ||
|
27
|
27
94002-060-800-S NutHEX., 6MM |
94002-060-800-S |
from US $0.44 |
||
|
28
|
28
94111-06800 WasherSPRING, 6MM |
94111-06800 |
from US $0.37 |
||
|
29
|
29
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
30
|
30
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
||
|
31
|
31
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
||
|
32
|
32
9820020700 Fuse b (7a) |
9820020700 |
from US $0.59 |
||
