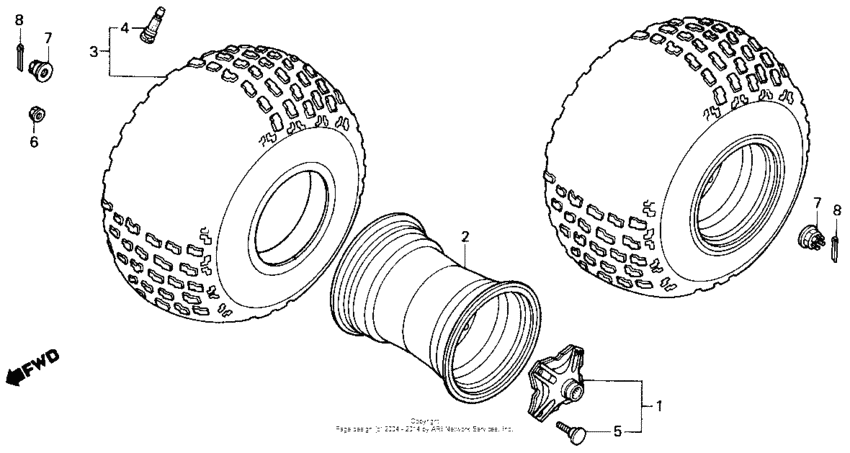

Rear wheel Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TE050*HK200019 - JH3TE050*HK230880
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42410-HC3-000 Hub comp.,rr.whee |
42410-HC3-000 |
US $196.06 |
||
|
2
|
2
42701-HC3-000
Rim,comp.,wheel
|
42701-HC3-000 |
— | ||
|
3
|
3
42710-HC3-003AT
Tire assy. (22x10-8)
|
42710-HC3-003AT |
— | ||
|
4
|
4
42753-VM0-003 Valve, rim |
42753-VM0-003 |
from US $10.06 |
||
|
5
|
5
90103-VM6-300 Bolt, wheel (8x20) |
90103-VM6-300 |
from US $4.88 |
||
|
6
|
6
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $1.94 |
||
|
7
|
7
90304-HM5-A80 Nut, castle (18mm) |
90304-HM5-A80 |
from US $6.07 |
||
|
8
|
8
9420140400 Pin, split, 4.0x40 |
9420140400 |
from US $0.44 |
