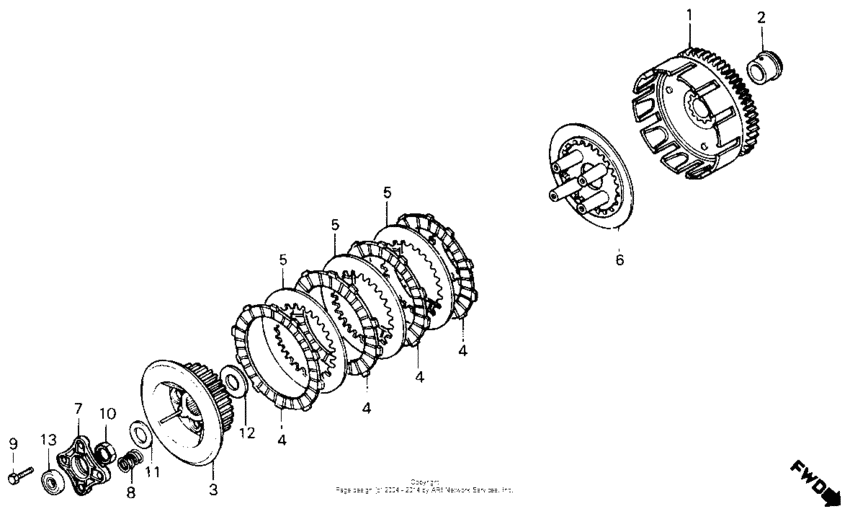

Clutch Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1988
- Sales region
- USA
- Frame
- JH3TE050*JK300001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-HB6-000
Clutch (outer)
|
22100-HB6-000 |
— | ||
|
2
|
2
22116-HB6-670
Guide, clutch
|
22116-HB6-670 |
— | ||
|
3
|
3
22121-HC3-000
Center,clutch
|
22121-HC3-000 |
— | ||
|
4
|
4
22201-166-000 Disk, clutch friction |
22201-166-000 |
from US $10.71 |
||
|
5
|
5
22311-KN4-680 Plate, clutch |
22311-KN4-680 |
from US $6.96 |
||
|
6
|
6
22350-115-020 Plate, clu press |
22350-115-020 |
from US $24.21 |
||
|
7
|
7
22361-HB6-000
Plate, clutch lifter
|
22361-HB6-000 |
— | ||
|
8
|
8
22401-HB6-000 Spring, clutch |
22401-HB6-000 |
from US $4.44 |
||
|
9
|
9
90050-357-000 Bolt (6x22) |
90050-357-000 |
from US $3.63 |
||
|
10
|
10
90201-HB3-000 Nut, special (16mm) |
90201-HB3-000 |
from US $5.14 |
||
|
11
|
11
90434-KR3-000 Washer, 16mm |
90434-KR3-000 |
from US $2.44 |
||
|
12
|
12
90432-958-000
Washer,20mm
|
90432-958-000 |
— | ||
|
13
|
13
91011-KK6-013 Bearing (16003) |
91011-KK6-013 |
from US $10.82 |
