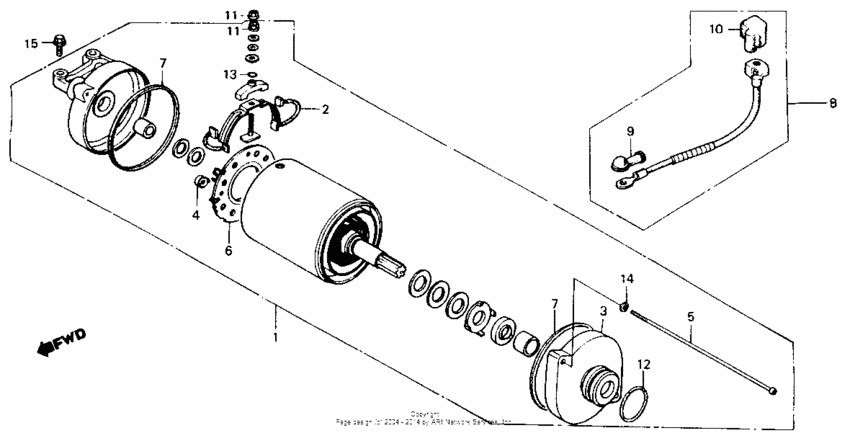

Starting motor Diagram Honda TRX 125 FourTrax 125
- Model code
- TRX125 A
- Engine Capacity
- 125
- Year
- 1988
- Sales region
- USA
- Frame
- JH3TE050*JK300001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31200-HB6-405
Motor assy,start
|
31200-HB6-405 |
— | ||
|
2
|
2
31201-KG7-000 Terminal set, brush |
31201-KG7-000 |
from US $16.18 |
||
|
3
|
3
31203-HB6-670
Bracket, rr.
|
31203-HB6-670 |
— | ||
|
4
|
4
31204-MA6-000 Spring, carbon brush |
31204-MA6-000 |
from US $3.40 |
||
|
5
|
5
31205-MN4-008 Bolt, setting |
31205-MN4-008 |
from US $3.70 |
||
|
6
|
6
31206-MM5-008 Holder set, brush |
31206-MM5-008 |
from US $22.22 |
||
|
7
|
7
31207-179-711 Ring, seal |
31207-179-711 |
from US $3.70 |
||
|
8
|
8
32402-HC3-000
Cable, starter motor
|
32402-HC3-000 |
— | ||
|
9
|
9
32411-KG1-920
Cover,terminal
|
32411-KG1-920 |
— | ||
|
10
|
10
32416-HB3-000
Cover b
|
32416-HB3-000 |
— | ||
|
11
|
11
90071-MB0-000 Nut-washer, 6mm |
90071-MB0-000 |
from US $2.22 |
||
|
12
|
12
91312-MG7-003 O-ring (24.4x3.1) |
91312-MG7-003 |
from US $7.99 |
||
|
13
|
13
91320-MB0-000 O-ring |
91320-MB0-000 |
from US $2.12 |
||
|
14
|
14
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
15
|
15
95801-0602800 Bolt, flange, 6x28 |
95801-0602800 |
from US $0.59 |
