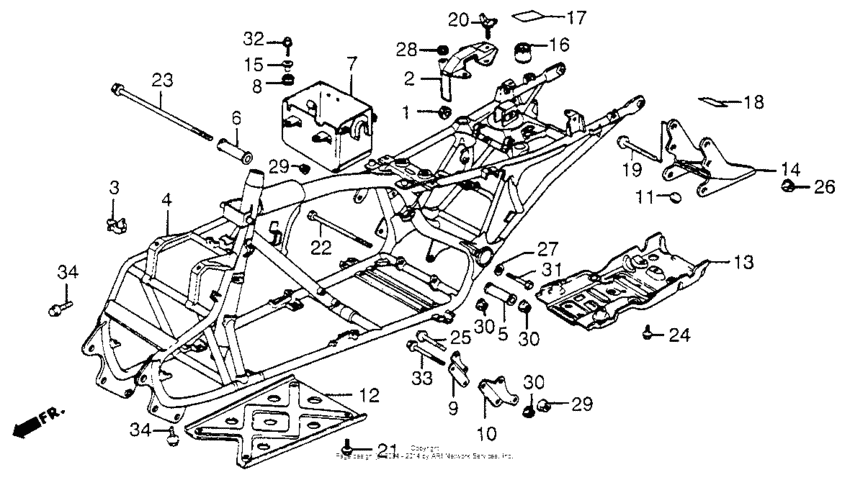

Frame Diagram Honda TRX 200 FourTrax 200
- Model code
- TRX200 A
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TE030*EC000007 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17611-437-000 Rubber, fr. tank |
17611-437-000 |
from US $3.75 |
||
|
2
|
2
31512-958-680
Holder batery box
|
31512-958-680 |
— | ||
|
3
|
3
46391-VM0-003 Clip, brake pipe (a) |
46391-VM0-003 |
from US $2.19 |
||
|
4
|
4
50100-VM5-000
Frame
|
50100-VM5-000 |
— | ||
|
5
|
5
50250-958-680
Collar, l
|
50250-958-680 |
— | ||
|
6
|
6
50252-958-680
Collar, r
|
50252-958-680 |
— | ||
|
7
|
7
50325-VM5-000
Box, battery
|
50325-VM5-000 |
— | ||
|
8
|
8
50329-968-000
Rubber
|
50329-968-000 |
— | ||
|
9
|
9
50351-VM5-000
Hanger, r. engine
|
50351-VM5-000 |
— | ||
|
10
|
10
50352-VM5-000
Hanger, l. engine
|
50352-VM5-000 |
— | ||
|
11
|
11
50352-969-000
Rubber a, stopper
|
50352-969-000 |
— | ||
|
12
|
12
50354-VM5-000
Plate, fr. skid
|
50354-VM5-000 |
— | ||
|
13
|
13
50355-VM5-000
Plate, skid
|
50355-VM5-000 |
— | ||
|
14
|
14
50810-VM5-000
Hitch, trailer
|
50810-VM5-000 |
— | ||
|
15
|
15
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
15
|
15
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.07 |
||
|
15
|
15
61105-428-000
Collar, rr. fender
|
61105-428-000 |
— | ||
|
16
|
16
77207-HA0-000 Rubber, seat setting |
77207-HA0-000 |
from US $4.74 |
||
|
17
|
17
87136-VM5-000
Label, main fuse
|
87136-VM5-000 |
— | ||
|
18
|
18
87508-VM5-000
Label, trailer hitch
|
87508-VM5-000 |
— | ||
|
19
|
19
90105-MG3-000 Bolt, flg (10x110) |
90105-MG3-000 |
from US $9.03 |
||
|
20
|
20
90105-958-405
Bolt, wing
|
90105-958-405 |
— | ||
|
21
|
21
90118-958-003 Bolt, flange, 6x12 |
90118-958-003 |
from US $3.51 |
||
|
22
|
22
90125-958-000 Bolt,hex.,10x115 |
90125-958-000 |
US $9.83 |
||
|
23
|
23
90135-958-000
Bolt,hex.,10x240
|
90135-958-000 |
— | ||
|
24
|
24
90156-964-670
Bolt-washer (8x12)
|
90156-964-670 |
— | ||
|
25
|
25
90157-437-000 Bolt, hex., 8x85 |
90157-437-000 |
from US $4.24 |
||
|
26
|
26
90304-GA6-003 Nut, axle, 10mm |
90304-GA6-003 |
from US $2.47 |
||
|
27
|
27
90509-642-000 WasherPLAIN, 8.5X22X2.3 |
90509-642-000 |
from US $2.81 |
||
|
28
|
28
90852-898-000 Rubber, control box |
90852-898-000 |
from US $2.69 |
||
|
29
|
29
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
30
|
30
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
31
|
31
95301-080-600-0 Bolt, hex. (8x60) |
95301-080-600-0 |
from US $0.74 |
||
|
32
|
32
95700-060-250-8 BoltFLANGE, 6X25 |
95700-060-250-8 |
US $18.90 |
||
| replacement | |||||
|
32
|
32
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
32
|
32
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
33
|
33
95801-100-800-0 Bolt, flange (10x80) |
95801-100-800-0 |
from US $1.18 |
||
|
34
|
34
95701-060-100-7 BoltFLANGE, 6X10 |
95701-060-100-7 |
from US $0.58 |
||
