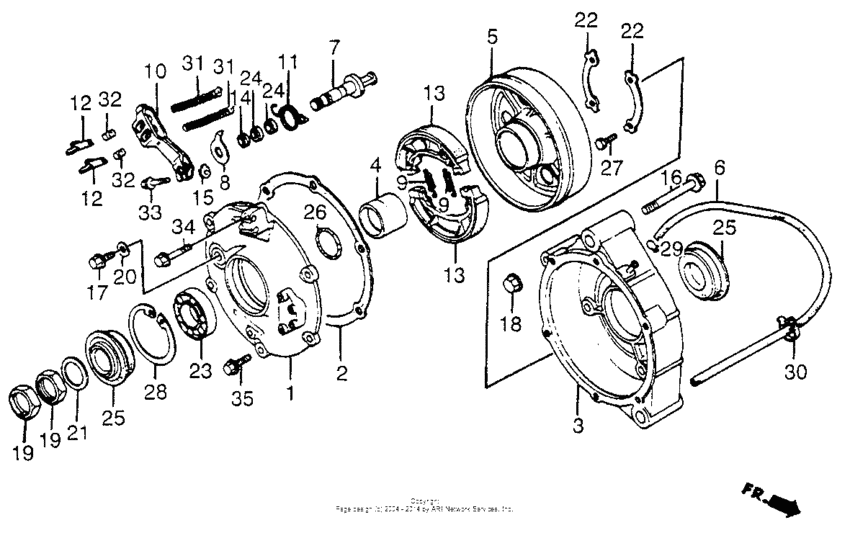

Rear brake drum Diagram Honda TRX 200 FourTrax 200
- Model code
- TRX200 A
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TE030*EC000007 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40532-VM5-000
Cov,rr.brk.drum
|
40532-VM5-000 |
— | ||
|
2
|
2
40539-969-505 Gasket, brake cover |
40539-969-505 |
US $5.69 |
||
|
3
|
3
41302-VM5-000
Case, rr. brake drum
|
41302-VM5-000 |
— | ||
|
4
|
4
42621-969-000
Collar,rr.axle
|
42621-969-000 |
— | ||
|
5
|
5
42622-969-000
Drum,rr.brake
|
42622-969-000 |
— | ||
|
6
|
6
43122-VM5-000
Tube, breather
|
43122-VM5-000 |
— | ||
|
7
|
7
43141-969-000
Cam,rr.brake
|
43141-969-000 |
— | ||
|
8
|
8
43145-VM5-000
Indicator, brake
|
43145-VM5-000 |
— | ||
|
9
|
9
43151-329-000 Spring, brake shoe |
43151-329-000 |
from US $2.96 |
||
|
10
|
10
43410-VM5-000
Arm,rear brake
|
43410-VM5-000 |
— | ||
|
11
|
11
43413-969-000
Spg,rr.brk.ret.
|
43413-969-000 |
— | ||
|
12
|
12
43459-HM5-A10 Nut, brake adjusting |
43459-HM5-A10 |
US $10.81 |
||
|
13
|
13
06430-HF7-A30 Shoe set, brake |
06430-HF7-A30 |
from US $36.86 |
||
|
13
|
13
45120-303-690
Shoe, fr. brake
|
45120-303-690 |
— | ||
| replacement | |||||
|
13
|
13
06430-HF7-A30 Shoe set, brake |
06430-HF7-A30 |
from US $36.86 |
||
|
14
|
14
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.15 |
||
|
15
|
15
45436-001-000 Nut, fr. brake arm setting |
45436-001-000 |
from US $2.22 |
||
|
16
|
16
90106-HE0-000
Bolt,flange,12x19
|
90106-HE0-000 |
— | ||
|
16
|
16
90108-VM5-000
Bolt,flg 12x193
|
90108-VM5-000 |
— | ||
| replacement | |||||
|
16
|
16
90106-HE0-000
Bolt,flange,12x19
|
90106-HE0-000 |
— | ||
|
17
|
17
90109-371-000 Bolt, sealing, 8mm |
90109-371-000 |
from US $4.14 |
||
|
18
|
18
90306-181-761 Nut, flange (12mm) |
90306-181-761 |
from US $3.70 |
||
|
19
|
19
90307-968-000
Nut, rr. axle
|
90307-968-000 |
— | ||
|
20
|
20
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.92 |
||
|
21
|
21
90481-HC4-000 Washer, taper |
90481-HC4-000 |
from US $4.74 |
||
|
21
|
21
90481-958-000 Washer, taper (32mm) |
90481-958-000 |
US $9.50 |
||
| replacement | |||||
|
21
|
21
90481-HC4-000 Washer, taper |
90481-HC4-000 |
from US $4.74 |
||
|
22
|
22
90513-969-000
Washer,tongued
|
90513-969-000 |
— | ||
|
23
|
23
91053-969-003 Brg,ball 45x68x12 |
91053-969-003 |
US $79.37 |
||
|
24
|
24
91208-611-005 Dust seal14X20X4 (NOK) |
91208-611-005 |
from US $2.74 |
||
|
25
|
25
91253-968-005 Dust seal (45x65x15) |
91253-968-005 |
from US $17.32 |
||
|
26
|
26
91306-MA6-005 O-ring (31.7x2.4) |
91306-MA6-005 |
from US $3.92 |
||
|
27
|
27
92201-08028-0H Bolt, hex., 8x28 |
92201-08028-0H |
from US $0.59 |
||
|
28
|
28
94524-68000 CirclipINTERNAL, 68MM |
94524-68000 |
US $2.66 |
||
|
29
|
29
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
30
|
30
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
31
|
31
9501473100 Spring a, brake rod |
9501473100 |
from US $0.74 |
||
|
32
|
32
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
||
|
33
|
33
95701-060-280-8 BoltFLANGE, 6X28 |
95701-060-280-8 |
from US $0.74 |
||
|
34
|
34
95701-080-250-0 BoltFLANGE, 8X25 |
95701-080-250-0 |
from US $0.74 |
||
|
35
|
35
95701-080-450-0 BoltFLANGE, 8X45 |
95701-080-450-0 |
from US $0.81 |
||
