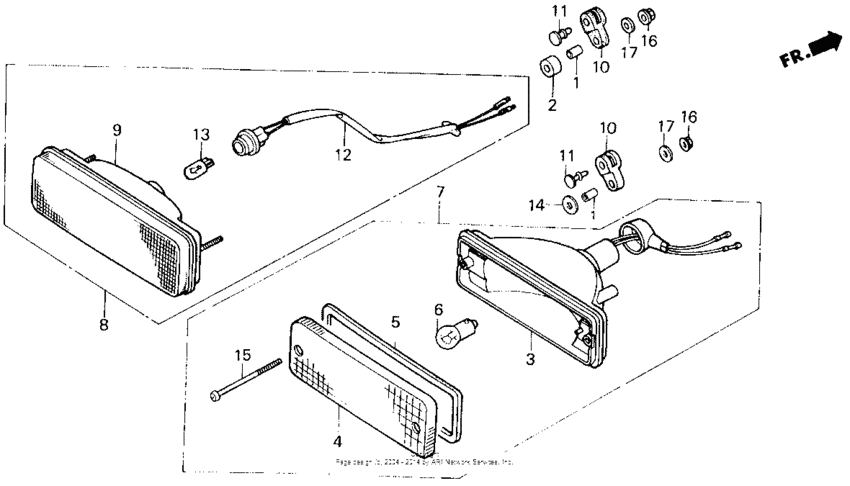

Taillight 86 Diagram Honda TRX 200 FourTrax 200 SX
- Model code
- TRX200SX A
- Engine Capacity
- 200
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TE030*GK000030 - JH3TE030*GK064061
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 200 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17201-HB3-000
Collar
|
17201-HB3-000 |
— | ||
|
2
|
2
17207-VM6-000 Collar,tail lightUse from Frame SN GK054378 |
17207-VM6-000 |
US $4.51 |
||
|
3
|
3
33300-HB3-000
Housing comp
Use up to Frame SN GK054377 |
33300-HB3-000 |
— | ||
|
4
|
4
33302-958-013 Lens, taillightUse up to Frame SN GK054377 |
33302-958-013 |
from US $14.08 |
||
|
5
|
5
33303-958-003
Gasket
Use up to Frame SN GK054377 |
33303-958-003 |
— | ||
|
6
|
6
34910-504-003
Bulb (12v5w)
Use up to Frame SN GK054377 |
34910-504-003 |
— | ||
|
7
|
7
33700-HB3-000
Taillight assy.
Use up to Frame SN GK054377 |
33700-HB3-000 |
— | ||
|
8
|
8
33700-HB6-003
Light assy tail
Use from Frame SN GK054378 |
33700-HB6-003 |
— | ||
|
9
|
9
33710-HB6-003
Lens comp.,tail
Use from Frame SN GK054378 |
33710-HB6-003 |
— | ||
|
10
|
10
33715-VM6-000 Rubber |
33715-VM6-000 |
from US $6.51 |
||
|
11
|
11
33716-964-000 Pin |
33716-964-000 |
from US $3.55 |
||
|
12
|
12
33705-HA6-003
Socket comp
Use from Frame SN GK054378 |
33705-HA6-003 |
— | ||
|
13
|
13
34351-657-921 Bulb12V/5W) (STANLEY Use from Frame SN GK054378 |
34351-657-921 |
from US $1.63 |
||
|
14
|
14
90502-KK9-910 Washer (4.5x18)Use up to Frame SN GK054377 |
90502-KK9-910 |
from US $2.66 |
||
|
15
|
15
93500-040-450-A Screw,pan,4x45Use up to Frame SN GK054377 |
93500-040-450-A |
US $0.44 |
||
|
16
|
16
94050-04080 NutFLANGE, 4MM |
94050-04080 |
from US $0.44 |
||
|
17
|
17
94103-04800 WasherPLAIN, 4MM |
94103-04800 |
from US $0.37 |
