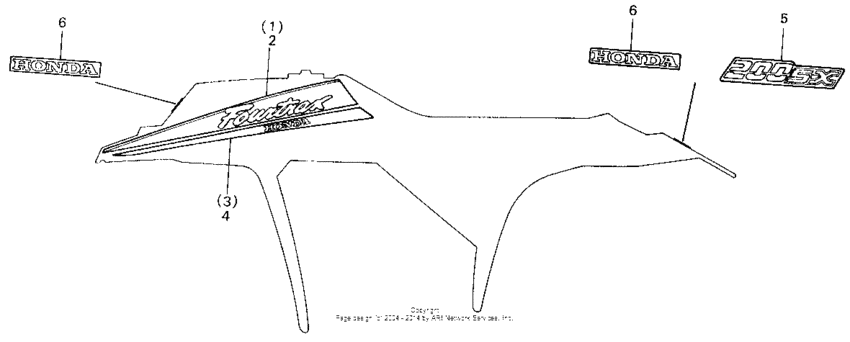

Emblem 88 Diagram Honda TRX 200 FourTrax 200 SX
- Model code
- TRX200SX A
- Engine Capacity
- 200
- Year
- 1988
- Sales region
- USA
- Frame
- JH3TE030*JK200003 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 200 SX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87120-HB3-840
Emb, r. tank cover
|
87120-HB3-840 |
— | ||
|
2
|
2
87121-HB3-840
Emb, l. tank cover
|
87121-HB3-840 |
— | ||
|
3
|
3
87122-HB3-840
Stripe, r. side
|
87122-HB3-840 |
— | ||
|
4
|
4
87123-HB3-840
Stripe, l. side
|
87123-HB3-840 |
— | ||
|
5
|
5
87130-HB3-840
Emblem, rr. fender
|
87130-HB3-840 |
— |
