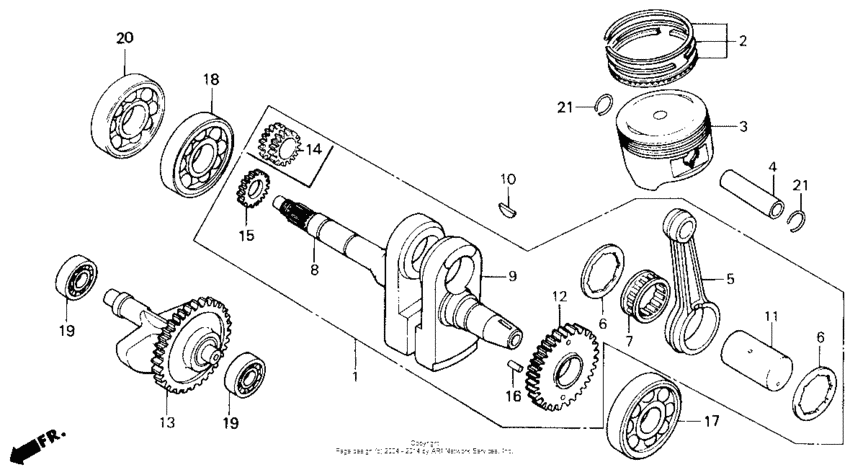

Crankshaft Diagram Honda TRX 250 FourTrax 250
- Model code
- TRX250 A
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE060*FC000021 - JH3TE060*FC057385
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13000-HA0-303
Crankshaft
|
13000-HA0-303 |
— | ||
|
2
|
2
13011-HC4-306 Ring set (std) |
13011-HC4-306 |
from US $36.85 |
||
|
2
|
2
13021-HC4-306 Ring set (os 0.25)(Optional). |
13021-HC4-306 |
US $48.20 |
||
|
2
|
2
13031-HC4-306 Ring set (os 0.50)(Optional). |
13031-HC4-306 |
US $57.18 |
||
|
2
|
2
13041-HC4-306
Ring set (0.75)
(Optional). |
13041-HC4-306 |
— | ||
|
2
|
2
13051-HC4-306 Ring set (1.00)(Optional). |
13051-HC4-306 |
US $48.20 |
||
|
3
|
3
13101-HA0-004
Piston (std)
|
13101-HA0-004 |
— | ||
|
3
|
3
13102-HA0-305
Piston (os) (0.25)
(Optional). |
13102-HA0-305 |
— | ||
|
3
|
3
13103-HA0-305
Piston (os) (0.50)
(Optional). |
13103-HA0-305 |
— | ||
|
3
|
3
13104-HA0-305
Piston 0.75
(Optional). |
13104-HA0-305 |
— | ||
|
3
|
3
13105-HA0-305
Piston 1.00
(Optional). |
13105-HA0-305 |
— | ||
|
4
|
4
13111-KG0-000
Pin,piston
|
13111-KG0-000 |
— | ||
|
5
|
5
13201-HA0-300
Rod,connecting
|
13201-HA0-300 |
— | ||
|
6
|
6
13202-KG0-003
Pl,conn.rod side
|
13202-KG0-003 |
— | ||
|
7
|
7
13211-428-300 Bearing,con rod |
13211-428-300 |
US $16.93 |
||
|
7
|
7
13212-428-300 Bearing,con rod |
13212-428-300 |
US $13.75 |
||
|
7
|
7
13213-428-300 Bearing,con rod |
13213-428-300 |
US $16.93 |
||
|
8
|
8
13311-HA0-303
Crank shaft.rh.
Use up to Engine SN 5033116 |
13311-HA0-303 |
— | ||
|
8
|
8
13311-HA0-310
Crankshaft, r.
Use from Engine SN 5033117 |
13311-HA0-310 |
— | ||
|
9
|
9
13321-HA0-300
Crankshaft, l
|
13321-HA0-300 |
— | ||
|
10
|
10
13331-357-000 Key, special woodruff, 25x18 |
13331-357-000 |
from US $4.74 |
||
|
11
|
11
13381-HA0-770 Pin comp.,crank |
13381-HA0-770 |
US $51.41 |
||
|
12
|
12
13410-HA0-300 Gear,bal drive |
13410-HA0-300 |
US $93.64 |
||
|
13
|
13
13420-HA0-000
Shaft comp,balanc
|
13420-HA0-000 |
— | ||
|
14
|
14
14312-HA0-300 Sprocket,timingUse up to Engine SN 5033116 |
14312-HA0-300 |
US $49.74 |
||
|
15
|
15
15130-HA0-300 Gear,oil pump driUse from Engine SN 5033117 |
15130-HA0-300 |
from US $18.18 |
||
|
16
|
16
90701-HA0-000
Pin,stopper
|
90701-HA0-000 |
— | ||
|
17
|
17
91001-KE5-018
Bearing, radial ball
Use up to Engine SN 5017296 |
91001-KE5-018 |
— | ||
|
18
|
18
91002-HA0-008
Bearing (36)
Use up to Engine SN 5033116 |
91002-HA0-008 |
— | ||
|
18
|
18
91010-HC4-004
Bearing (40x76x17.5)
Use from Engine SN 5033117 |
91010-HC4-004 |
— | ||
|
19
|
19
91004-GJ5-023 Bearing, radial ball |
91004-GJ5-023 |
from US $12.28 |
||
|
20
|
20
91009-HA0-004 Bearing (6303sp) |
91009-HA0-004 |
from US $14.78 |
||
|
21
|
21
9460119000 Clip, piston pin, 19mm |
9460119000 |
from US $0.44 |
