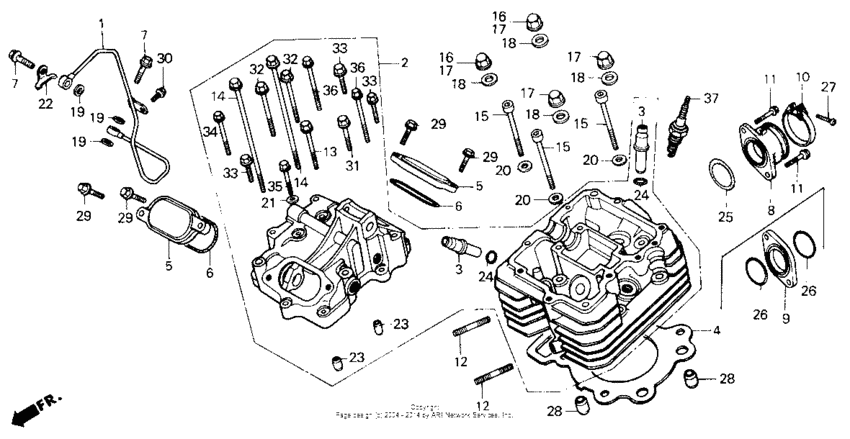

Cylinder head Diagram Honda TRX 250 FourTrax 250
- Model code
- TRX250 A
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE060*FC000021 - JH3TE060*FC057385
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11335-HA0-003
Pipe, oil passage
Use from Engine SN 5033597 |
11335-HA0-003 |
— | ||
|
2
|
2
12000-HA0-770
Cylinder head assy
|
12000-HA0-770 |
— | ||
|
3
|
3
12232-HA0-305
Guide, valve (os)
|
12232-HA0-305 |
— | ||
|
4
|
4
12251-HA0-004 Gasket, cyl hd |
12251-HA0-004 |
from US $23.39 |
||
|
4
|
4
12252-HA0-305 Gasket(Optional). |
12252-HA0-305 |
from US $27.17 |
||
|
5
|
5
12351-428-000 Cover, tap adj hole |
12351-428-000 |
from US $18.60 |
||
|
6
|
6
12392-HC4-005 Gasket, tappet cover |
12392-HC4-005 |
from US $3.26 |
||
|
7
|
7
15533-KL8-730
Bolt, flange (7x23)
|
15533-KL8-730 |
— | ||
|
8
|
8
16211-HA0-000
Insulator,carb.
|
16211-HA0-000 |
— | ||
|
9
|
9
16215-HA0-405
Plate carburetor inn
|
16215-HA0-405 |
— | ||
|
10
|
10
16219-422-000 Band, insulator |
16219-422-000 |
from US $8.73 |
||
|
11
|
11
90004-HA0-000
Bolt,flange,6x22
|
90004-HA0-000 |
— | ||
|
12
|
12
90005-HA0-003 Bolt,ft stud 8x40 |
90005-HA0-003 |
from US $3.47 |
||
|
13
|
13
90009-HA0-000 Bolt, flange (6x52) |
90009-HA0-000 |
from US $3.85 |
||
|
14
|
14
95701-0614000 Bolt, flange (6x140) |
95701-0614000 |
from US $1.48 |
||
|
15
|
15
90064-HA0-000
Bolt, socket (8x88)
|
90064-HA0-000 |
— | ||
|
17
|
17
90202-329-000 Nut (10mm) |
90202-329-000 |
from US $3.48 |
||
|
18
|
18
90410-HA0-000 Washer (10mm) |
90410-HA0-000 |
US $4.28 |
||
|
19
|
19
90441-MC0-000 Washer (7mm) |
90441-MC0-000 |
from US $2 |
||
|
20
|
20
90441-469-000 Washer (8mm) |
90441-469-000 |
US $8.36 |
||
|
21
|
21
90441-909-000
Washer,seal
|
90441-909-000 |
— | ||
|
22
|
22
90443-HA0-771 Washer, lock (7mm) |
90443-HA0-771 |
US $8.02 |
||
|
23
|
23
90703-HA0-000
Pin, dowel (8x11)
Use up to Engine SN 5034736 |
90703-HA0-000 |
— | ||
|
23
|
23
9430108120 Pin a, dowel, 8x12Use from Engine SN 5034737 |
9430108120 |
from US $0.89 |
||
|
24
|
24
91301-200-000 O-ring (10x1.6) |
91301-200-000 |
from US $2.37 |
||
|
26
|
26
91306-HA0-003 O-ring,33.7x2.6 |
91306-HA0-003 |
from US $3.70 |
||
|
27
|
27
93500-050-200-G ScrewPAN, 5X20 |
93500-050-200-G |
from US $0.37 |
||
|
28
|
28
94301-12200 Dowel pin12X20 |
94301-12200 |
from US $1.04 |
||
|
29
|
29
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
||
|
30
|
30
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
31
|
31
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
32
|
32
95701-0607000 Bolt, flange, 6x70 |
95701-0607000 |
from US $0.81 |
||
|
33
|
33
96000-0602500 Bolt, flange, 6x25 |
96000-0602500 |
US $24.50 |
||
| replacement | |||||
|
33
|
33
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
33
|
33
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
34
|
34
96001-060-350-0 Bolt, flange, 6x35 |
96001-060-350-0 |
from US $0.74 |
||
|
35
|
35
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
||
|
36
|
36
96001-060-450-0 Bolt, flange (6x45) |
96001-060-450-0 |
from US $0.81 |
||
|
37
|
37
9806938719 Spark plug (dr8es-l) |
9806938719 |
from US $3.49 |
||
|
37
|
37
9806957719 Spark plug (dr7es)(Optional). |
9806957719 |
from US $3.57 |
||
|
37
|
37
98069-57726 Plug, spark (x22esr-u) (denso)(Optional). |
98069-57726 |
from US $3.81 |
||
|
37
|
37
9806958719 Spark plug (dr8es)(Optional). |
9806958719 |
from US $4.08 |
||
|
37
|
37
9806958726 S/plg (x24esr-u) |
9806958726 |
from US $3.96 |
||
|
37
|
37
9806959726 S/plg (x27esr-u)(Optional). |
9806959726 |
from US $3.71 |
||
