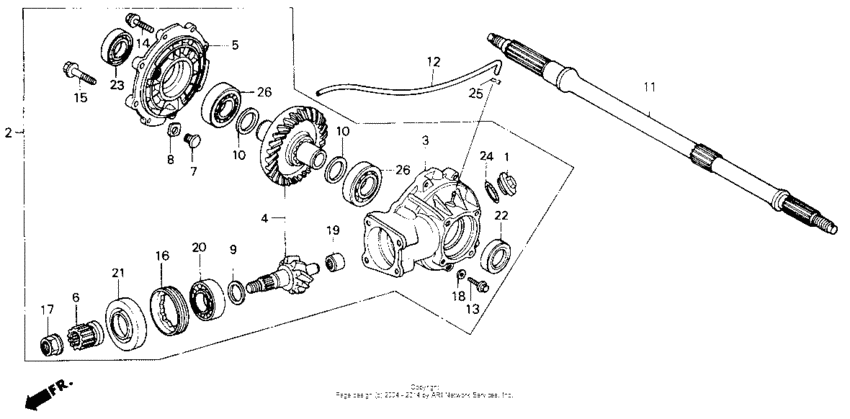

Final driven gear Diagram Honda TRX 250 FourTrax 250
- Model code
- TRX250 A
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE060*FC000021 - JH3TE060*FC057385
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12361-300-000 Cap, valve adj. |
12361-300-000 |
from US $13.04 |
||
|
2
|
2
41300-HA0-680
Case assy,final g
|
41300-HA0-680 |
— | ||
|
3
|
3
41301-HA0-680
Case comp.,final
|
41301-HA0-680 |
— | ||
|
4
|
4
41310-HA0-300
Gear set,final
|
41310-HA0-300 |
— | ||
|
5
|
5
41321-HA0-680
Cover,final gear
|
41321-HA0-680 |
— | ||
|
6
|
6
41411-HA0-000
Joint, pinion
|
41411-HA0-000 |
— | ||
|
7
|
7
41436-MB0-310 Pin |
41436-MB0-310 |
from US $15.64 |
||
|
8
|
8
41437-MB0-310 Shim a (0.10) |
41437-MB0-310 |
from US $4 |
||
|
8
|
8
41438-MB0-310 Shim b (0.15) |
41438-MB0-310 |
from US $4 |
||
|
9
|
9
41451-HA0-000 Shim a (1.82) |
41451-HA0-000 |
US $10.27 |
||
|
9
|
9
41452-HA0-000 Shim b (1.88) |
41452-HA0-000 |
US $8.91 |
||
|
9
|
9
41453-HA0-000 Shim c (1.94) |
41453-HA0-000 |
US $8.91 |
||
|
9
|
9
41454-HA0-000 Shim d (2.00) |
41454-HA0-000 |
US $10.27 |
||
|
9
|
9
41455-HA0-000 Shim e (2.06) |
41455-HA0-000 |
US $6.32 |
||
|
9
|
9
41456-HA0-000 Shim f (2.12) |
41456-HA0-000 |
US $6.32 |
||
|
9
|
9
41457-HA0-000 Shim g (2.18) |
41457-HA0-000 |
US $6.32 |
||
|
10
|
10
41540-HA0-000 Spacer a (1.82) |
41540-HA0-000 |
from US $8.58 |
||
|
10
|
10
41541-HA0-000 Spacer b (1.88) |
41541-HA0-000 |
US $13.65 |
||
|
10
|
10
41542-HA0-000 Spacer c (1.94) |
41542-HA0-000 |
US $13.65 |
||
|
10
|
10
41543-HA0-000 Spacer d (2.00) |
41543-HA0-000 |
US $13.65 |
||
|
10
|
10
41544-HA0-000 Spacer e (2.06) |
41544-HA0-000 |
US $13.65 |
||
|
10
|
10
41545-HA0-000 Spacer f (2.12) |
41545-HA0-000 |
US $13.65 |
||
|
10
|
10
41546-HA0-000 Spacer g (2.18) |
41546-HA0-000 |
US $13.65 |
||
|
10
|
10
41547-HA0-000 Spacer h (2.24) |
41547-HA0-000 |
US $13.65 |
||
|
10
|
10
41548-HA0-000 Spacer i (2.30) |
41548-HA0-000 |
US $13.65 |
||
|
11
|
11
42311-HA8-000
Axle,rear wheel
|
42311-HA8-000 |
— | ||
|
12
|
12
43123-HA8-000
Tube (3.5x1140)
|
43123-HA8-000 |
— | ||
|
13
|
13
90109-371-000 Bolt, sealing, 8mm |
90109-371-000 |
from US $3.63 |
||
|
14
|
14
90133-MB0-000 Bolt, flange (8x27) |
90133-MB0-000 |
from US $5.77 |
||
|
15
|
15
90134-HA0-000 Bolt, flange (10x35) |
90134-HA0-000 |
from US $5.33 |
||
|
16
|
16
90244-HA0-000 Nut, lock (60mm) |
90244-HA0-000 |
from US $23.10 |
||
|
17
|
17
90381-HA0-000 Nut, hex. (16mm) |
90381-HA0-000 |
from US $5.45 |
||
|
18
|
18
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.70 |
||
|
19
|
19
91061-HA0-004
Brg,ndl.14x22x16
|
91061-HA0-004 |
— | ||
|
20
|
20
91061-ME4-004 Bearing (22x56x16) |
91061-ME4-004 |
US $45.24 |
||
|
21
|
21
91251-HC5-005 Oil seal (38x64x11) |
91251-HC5-005 |
from US $11.69 |
||
|
21
|
21
91251-HA0-004 Oil seal 38x64x12 |
91251-HA0-004 |
US $14.03 |
||
| replacement | |||||
|
21
|
21
91251-HC5-005 Oil seal (38x64x11) |
91251-HC5-005 |
from US $11.69 |
||
|
21
|
21
91251-HA0-014 Oil seal 38x64x11 |
91251-HA0-014 |
US $14.03 |
||
| replacement | |||||
|
21
|
21
91251-HC5-005 Oil seal (38x64x11) |
91251-HC5-005 |
from US $11.69 |
||
|
22
|
22
91252-HA0-003 Oil seal (35x49x6) |
91252-HA0-003 |
from US $11.70 |
||
|
23
|
23
91253-HA0-004
Oil seal 35x54x6
|
91253-HA0-004 |
— | ||
|
24
|
24
91302-001-020 O-ring, 30.8mm |
91302-001-020 |
from US $3.63 |
||
|
25
|
25
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
26
|
26
96100-600-730-0 Bearing (6007) |
96100-600-730-0 |
from US $11.25 |
||
