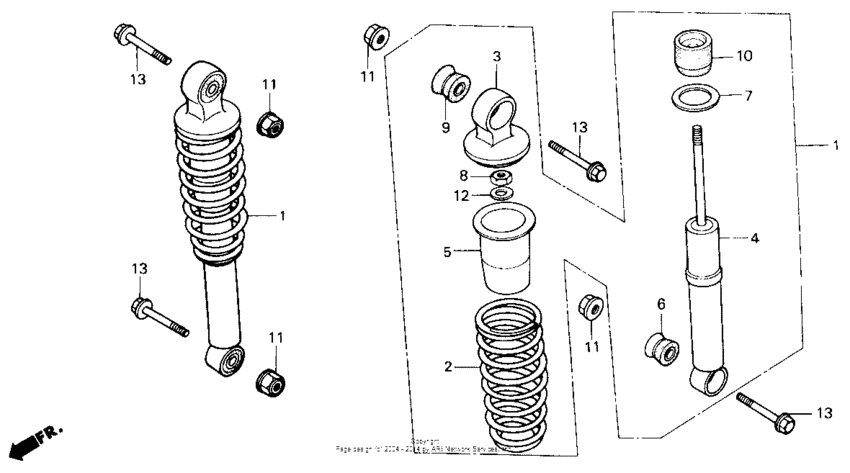

Front cushion Diagram Honda TRX 250 FourTrax 250
- Model code
- TRX250 A
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE060*FC000021 - JH3TE060*FC057385
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51400-HA8-003
Cushion assy,fr
|
51400-HA8-003 |
— | ||
|
2
|
2
51401-HA8-003
Spg,fr.cushion
|
51401-HA8-003 |
— | ||
|
3
|
3
51403-VM5-003
Netal,upper
|
51403-VM5-003 |
— | ||
|
4
|
4
51410-HA8-003
Damper comp.,fr.c
|
51410-HA8-003 |
— | ||
|
5
|
5
51458-VM5-003 Guide,spring |
51458-VM5-003 |
US $9.91 |
||
|
6
|
6
51489-VM5-003
Bush damper
|
51489-VM5-003 |
— | ||
|
7
|
7
52447-028-710
Seat, rr.
|
52447-028-710 |
— | ||
|
8
|
8
52482-175-621 Nut,lock,9mm |
52482-175-621 |
US $3.26 |
||
|
9
|
9
52489-473-003 Bush, shock absorber |
52489-473-003 |
from US $5.03 |
||
|
10
|
10
52517-383-871 Rubber,stopper |
52517-383-871 |
from US $5.03 |
||
|
11
|
11
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $1.94 |
||
|
12
|
12
9410210000 Washer, plain, 10mm |
9410210000 |
from US $0.44 |
||
|
13
|
13
95801-1005000 Bolt, flange (10x50) |
95801-1005000 |
from US $0.89 |
