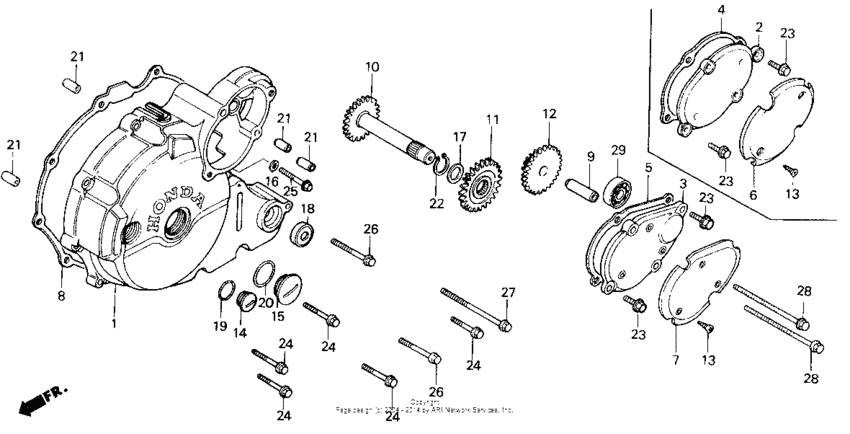

Left Crankcase Cover Diagram Honda TRX 250 FourTrax 250
- Model code
- TRX250 A
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE060*FC000021 - JH3TE060*FC057385
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-HA6-010
Cover, l. crankcase
|
11341-HA6-010 |
— | ||
|
2
|
2
11355-HA0-010
Cover, starting gear
Use up to Engine SN 5004415 |
11355-HA0-010 |
— | ||
|
4
|
4
11356-HA0-308 Gasket |
11356-HA0-308 |
from US $5.40 |
||
|
6
|
6
11357-HA0-000 Protector |
11357-HA0-000 |
US $14.82 |
||
|
8
|
8
11395-HC5-740 Gasket, l |
11395-HC5-740 |
from US $16.90 |
||
|
9
|
9
13111-GS7-000 Pin, piston |
13111-GS7-000 |
from US $12.43 |
||
|
10
|
10
28145-HA0-305
Shaft,set,startin
|
28145-HA0-305 |
— | ||
|
11
|
11
28135-HA0-315
Gear set,starting
|
28135-HA0-315 |
— | ||
|
12
|
12
28135-HA0-315
Gear set,starting
|
28135-HA0-315 |
— | ||
|
13
|
13
90017-HA0-000 Screw, tap (4x12) |
90017-HA0-000 |
from US $2.16 |
||
|
14
|
14
90084-471-000 Cap, alternator |
90084-471-000 |
US $6.81 |
||
|
15
|
15
90087-428-000 Cap (30mm) |
90087-428-000 |
from US $12.88 |
||
|
16
|
16
90441-909-000
Washer,seal
|
90441-909-000 |
— | ||
|
17
|
17
90451-GF6-000 Washer, thrust, 12mm |
90451-GF6-000 |
from US $2.15 |
||
|
18
|
18
91203-HC4-005 Oil seal (13x28x7) |
91203-HC4-005 |
from US $5.62 |
||
|
18
|
18
91201-HA0-004
Oil seal (13x28x7) (nok)
|
91201-HA0-004 |
— | ||
|
19
|
19
91303-377-000 O-ring, 13.8x2.5 |
91303-377-000 |
from US $5.49 |
||
|
20
|
20
91305-KF0-003 O-ring, 27x2 (arai) |
91305-KF0-003 |
from US $2.89 |
||
|
21
|
21
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
22
|
22
94510-15000 CirclipEXTERNAL, 15MM |
94510-15000 |
from US $0.44 |
||
|
23
|
23
96001-060-180-0 BoltFLANGE, 6X18 |
96001-060-180-0 |
from US $0.59 |
||
|
24
|
24
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
||
|
25
|
25
96001-060-350-0 Bolt, flange, 6x35 |
96001-060-350-0 |
from US $0.74 |
||
|
26
|
26
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
||
|
27
|
27
96001-0605500 Bolt, flange (6x55) |
96001-0605500 |
from US $0.81 |
||
|
28
|
28
96001-0609000 Bolt, flange (6x90) |
96001-0609000 |
from US $1.04 |
