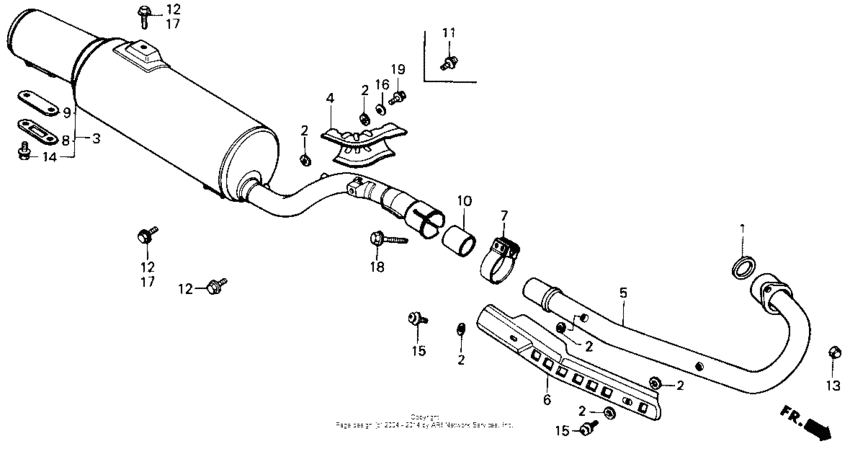

Muffler Diagram Honda TRX 250 FourTrax 250
- Model code
- TRX250 A
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE060*FC000021 - JH3TE060*FC057385
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18291-MN4-920 Gasket, ex. pipe |
18291-MN4-920 |
from US $5.33 |
||
|
2
|
2
18293-MCA-780 Packing, protector |
18293-MCA-780 |
from US $3.92 |
||
|
3
|
3
18310-HA8-013
Muffler comp
|
18310-HA8-013 |
— | ||
|
5
|
5
18320-HA0-003
Pipe exhaust
|
18320-HA0-003 |
— | ||
|
6
|
6
18321-HA8-003
Protector,ex.pipe
|
18321-HA8-003 |
— | ||
|
7
|
7
18373-HA0-003 Band, ex. muffler |
18373-HA0-003 |
from US $22.44 |
||
|
8
|
8
18373-429-010 Lid, muffler |
18373-429-010 |
from US $5 |
||
|
9
|
9
18374-MN1-880 Gasket, muffler lid |
18374-MN1-880 |
from US $4.44 |
||
|
10
|
10
18391-ML8-000 Gasket, muffler |
18391-ML8-000 |
from US $11.75 |
||
|
12
|
12
90190-MG3-000 Bolt, flange (8x12)Use from Frame SN FC005701 |
90190-MG3-000 |
from US $1.92 |
||
|
12
|
12
90156-964-670
Bolt-washer (8x12)
Use up to Frame SN FC005700 |
90156-964-670 |
— | ||
|
13
|
13
90304-ME1-670 Nut, cap (8mm) |
90304-ME1-670 |
from US $4.59 |
||
|
14
|
14
93401-060-120-7 BOLT WASHER |
93401-060-120-7 |
from US $0.52 |
||
|
15
|
15
93892-060-100-8 Screw-washer6X10 |
93892-060-100-8 |
US $0.56 |
||
|
18
|
18
95701-080-320-8 BoltFLANGE, 8X32 |
95701-080-320-8 |
from US $0.81 |
