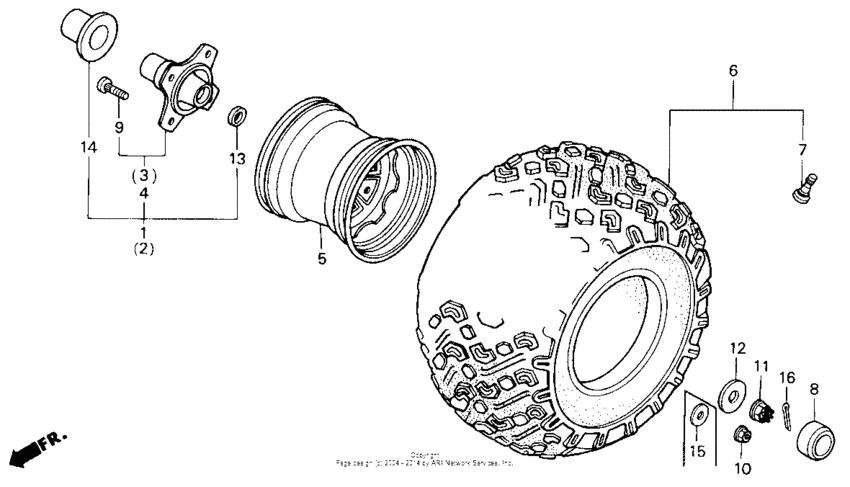

Rear wheel Diagram Honda TRX 250 FourTrax 250
- Model code
- TRX250 A
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE060*FC000021 - JH3TE060*FC057385
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
42610-HA8-000
Hub comp.,r rear
|
42610-HA8-000 |
— | ||
|
4
|
4
42620-HA8-000
Hub comp.,l rear
|
42620-HA8-000 |
— | ||
|
5
|
5
42701-HA0-000ZA
Rim,wheel*nh-35m*
|
42701-HA0-000ZA |
— | ||
|
6
|
6
42710-HA0-683
Tire assy. (25x12-9)
|
42710-HA0-683 |
— | ||
|
7
|
7
42753-VM0-003 Valve, rim |
42753-VM0-003 |
from US $10.06 |
||
|
8
|
8
44732-VM5-010
Cap,wheel center
|
44732-VM5-010 |
— | ||
|
9
|
9
90104-HA0-300 Bolt,wheel,10x25 |
90104-HA0-300 |
from US $6.14 |
||
|
10
|
10
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $1.94 |
||
|
11
|
11
90304-HM5-A80 Nut, castle (18mm) |
90304-HM5-A80 |
from US $6.07 |
||
|
12
|
12
90505-HA8-000
Washer,50x18x4.5
|
90505-HA8-000 |
— | ||
|
13
|
13
91255-HA8-004
Oil seal20x28.2x5
|
91255-HA8-004 |
— | ||
|
13
|
13
91255-HA8-003 Oil seal,20x28.2x |
91255-HA8-003 |
US $6.79 |
||
|
14
|
14
91265-HA8-003 Ring, side seal |
91265-HA8-003 |
from US $17.60 |
||
|
15
|
15
9410310000 Washer, plain, 10mm |
9410310000 |
from US $0.55 |
||
|
16
|
16
9420140300 Pin, split, 4.0x30 |
9420140300 |
from US $0.44 |
