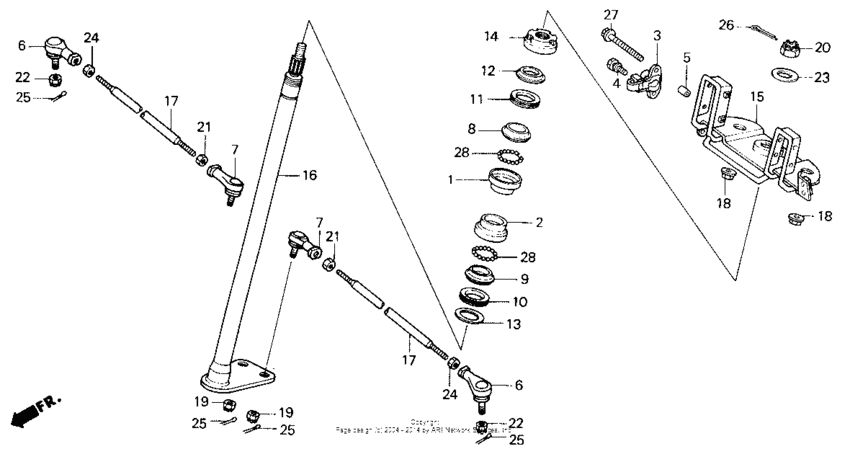

Steering shaft Diagram Honda TRX 250 FourTrax 250
- Model code
- TRX250 A
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE060*FC000021 - JH3TE060*FC057385
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50301-VM5-000
Race,strg ball
|
50301-VM5-000 |
— | ||
|
2
|
2
50302-HA8-000
Race,strg,ball
|
50302-HA8-000 |
— | ||
|
6
|
6
53150-HB3-003 Joint, ball |
53150-HB3-003 |
from US $35.50 |
||
|
7
|
7
53158-HB3-003 Joint, ball |
53158-HB3-003 |
from US $35.50 |
||
|
8
|
8
53211-VM5-000 Race,strg.top con |
53211-VM5-000 |
US $16.37 |
||
|
9
|
9
53212-HA8-000 Race,stg bom cone |
53212-HA8-000 |
US $15.16 |
||
|
10
|
10
53213-HA8-000
Seal,strg.dust
|
53213-HA8-000 |
— | ||
|
11
|
11
53213-VM5-010
Seal,steering dus
|
53213-VM5-010 |
— | ||
|
12
|
12
53214-HA8-000
Wash,strg.top sl
|
53214-HA8-000 |
— | ||
|
13
|
13
53215-HA8-000
Wash,strg.botm sl
|
53215-HA8-000 |
— | ||
|
14
|
14
53220-VM5-000
Thread,strg.head
|
53220-VM5-000 |
— | ||
|
15
|
15
53230-HA8-000
Bridge, fork top
|
53230-HA8-000 |
— | ||
|
16
|
16
53310-HA8-010
Shaft comp.,steer
Use up to Frame SN FC000508 |
53310-HA8-010 |
— | ||
|
17
|
17
53521-HA8-000
Rod,tie
|
53521-HA8-000 |
— | ||
| replacement | |||||
|
17
|
17
53521-HA8-505
Tie rod
|
53521-HA8-505 |
— | ||
|
18
|
18
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $1.94 |
||
|
19
|
19
90305-041-000 Nut,rear axleUse up to Frame SN FC000035 |
90305-041-000 |
from US $4.31 |
||
|
19
|
19
90320-601-000 NutCASTLE, 10MM Use from Frame SN FC000036 |
90320-601-000 |
from US $3.15 |
||
|
20
|
20
90308-HA8-000
Nut, castle (16mm)
|
90308-HA8-000 |
— | ||
|
21
|
21
90311-VM5-010 Nut, hex., 10mm (left hand thread) |
90311-VM5-010 |
from US $3.01 |
||
|
22
|
22
90320-601-000 NutCASTLE, 10MM |
90320-601-000 |
from US $3.15 |
||
|
23
|
23
90559-HA8-000 Washer, plain (16mm) |
90559-HA8-000 |
from US $4.29 |
||
|
24
|
24
9403010200 Nut, hex., 10mm |
9403010200 |
from US $0.52 |
||
|
25
|
25
94201-25300 Pin, split, 2.5x30 |
94201-25300 |
from US $0.44 |
||
|
26
|
26
9420140300 Pin, split, 4.0x30 |
9420140300 |
from US $0.44 |
||
|
28
|
28
9621105000 Ball, steel, #5 (5/32) |
9621105000 |
from US $0.15 |
||
