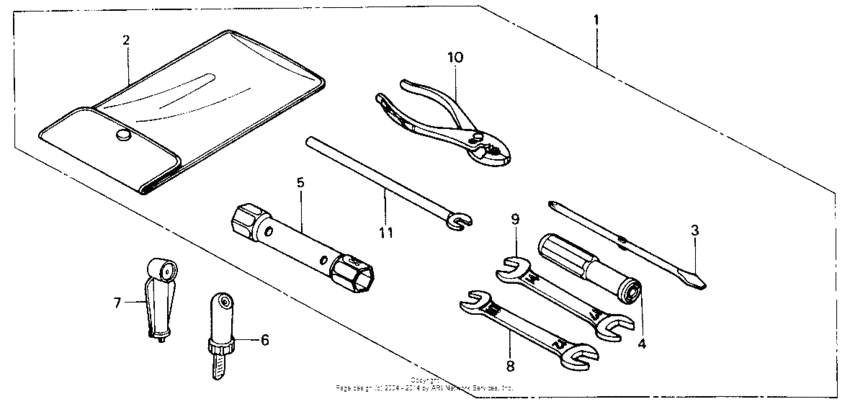

Tools Diagram Honda TRX 250 FourTrax 250
- Model code
- TRX250 A
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE060*FC000021 - JH3TE060*FC057385
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89010-HA8-000
Tool set
|
89010-HA8-000 |
— | ||
|
2
|
2
89101-965-003
Bag, tool (170)
|
89101-965-003 |
— | ||
| replacements | |||||
|
2
|
2
89101-ME5-670
Bag, tool
|
89101-ME5-670 |
— | ||
|
2
|
2
89101-MC7-000 Tool bag |
89101-MC7-000 |
from US $6.81 |
||
|
3
|
3
89102-538-000 Driver, SCREW(NO.2 + -) |
89102-538-000 |
from US $2.37 |
||
|
4
|
4
89103-538-000 Grip |
89103-538-000 |
US $6.78 |
||
|
5
|
5
89213-968-000
Wrench, box (18x17)
|
89213-968-000 |
— | ||
|
7
|
7
89301-918-672
Gauge, tire
(Optional). |
89301-918-672 |
— | ||
|
8
|
8
99001-10120 Spanner |
99001-10120 |
from US $3.55 |
||
|
9
|
9
99001-14170 Spanner14X17 |
99001-14170 |
from US $4.59 |
||
|
10
|
10
99002-13500
Pliers
|
99002-13500 |
— | ||
| replacement | |||||
|
10
|
10
89210-GBJ-J10 Pliers, 135 (kowa) |
89210-GBJ-J10 |
from US $8.88 |
||
|
11
|
11
9900502000 Bar b, handle |
9900502000 |
from US $2.96 |
||
