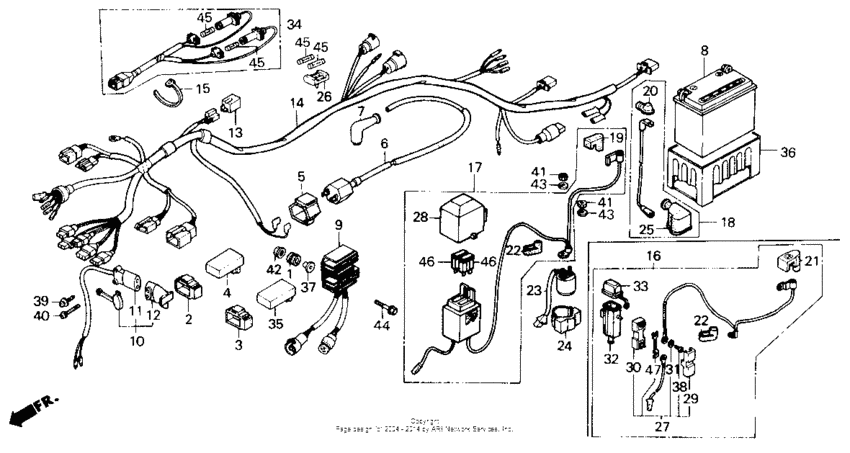

Wire harness Diagram Honda TRX 250 FourTrax 250
- Model code
- TRX250 A
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE060*FC000021 - JH3TE060*FC057385
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11344-MB0-000 Grommet a, rr. cover (8x16x6.6) |
11344-MB0-000 |
from US $3.48 |
||
|
2
|
2
30401-HA0-000
Cushion, c.d.i. unit
|
30401-HA0-000 |
— | ||
| replacement | |||||
|
2
|
2
30401-KYY-900 CUSHION |
30401-KYY-900 |
from US $4.82 |
||
|
3
|
3
30401-KB4-000 Cushion |
30401-KB4-000 |
from US $5.18 |
||
|
4
|
4
30410-HA8-003
C.d.i.unit
|
30410-HA8-003 |
— | ||
|
5
|
5
30506-VM6-000
Suspension
|
30506-VM6-000 |
— | ||
|
6
|
6
30510-KT0-405 Coil, ignition |
30510-KT0-405 |
from US $36.85 |
||
|
7
|
7
30700-MA0-163 Cap assy. |
30700-MA0-163 |
from US $24.71 |
||
|
8
|
8
31500-HF1-678AH Battery (ytx12-bs)Use up to Frame SN FC041323 |
31500-HF1-678AH |
from US $128.45 |
||
| replacement | |||||
|
8
|
8
31500-HS0-AK1AH BATTERY (YTX12-BS)Use up to Frame SN FC041323 |
31500-HS0-AK1AH |
US $128.45 |
||
|
9
|
9
31600-HA8-770
Rectifier, regulator
|
31600-HA8-770 |
— | ||
|
10
|
10
31650-VM5-003
Consent assy,dc
|
31650-VM5-003 |
— | ||
|
11
|
11
31651-VM5-003
Receptacle
|
31651-VM5-003 |
— | ||
|
12
|
12
31652-958-681
Plug
|
31652-958-681 |
— | ||
|
13
|
13
31700-166-008 Rectifier comp., silicon |
31700-166-008 |
from US $23.94 |
||
|
14
|
14
32100-HA8-000
Wire harness
|
32100-HA8-000 |
— | ||
|
15
|
15
32161-404-610 Band b1, wire |
32161-404-610 |
from US $3.18 |
||
|
16
|
16
32401-HA8-000
Cable,relay bat
|
32401-HA8-000 |
— | ||
|
21
|
21
32412-HA8-000
Cover
|
32412-HA8-000 |
— | ||
|
22
|
22
32412-MB1-000
Cover a,mag.sw
|
32412-MB1-000 |
— | ||
|
23
|
23
35850-HA8-771 Switch assy.,statUse up to Frame SN FC030423 |
35850-HA8-771 |
US $92.31 |
||
|
24
|
24
35856-425-000 Rubber |
35856-425-000 |
from US $5.92 |
||
|
26
|
26
38205-HA8-000
Case, fuse
|
38205-HA8-000 |
— | ||
|
27
|
27
38250-HA0-003
Box main fuse
|
38250-HA0-003 |
— | ||
|
29
|
29
38251-KJ9-000
Cover
|
38251-KJ9-000 |
— | ||
|
30
|
30
38252-KJ9-005 Base |
38252-KJ9-005 |
US $22.30 |
||
|
31
|
31
38253-422-005
Washer, plain, 3x10
|
38253-422-005 |
— | ||
|
32
|
32
38254-HA0-000
Suspension
|
38254-HA0-000 |
— | ||
|
33
|
33
38255-HA0-000
Cap
|
38255-HA0-000 |
— | ||
|
34
|
34
38260-HA8-000
Fuse assy,sub.
|
38260-HA8-000 |
— | ||
|
35
|
35
38710-HA8-003
Alarm unit
|
38710-HA8-003 |
— | ||
|
36
|
36
50334-HA0-000
Cushion,battery
|
50334-HA0-000 |
— | ||
|
37
|
37
83119-MG9-000 Collar, lock setting |
83119-MG9-000 |
from US $3.04 |
||
|
38
|
38
93500-030080H Screw, pan, 3x8 |
93500-030080H |
from US $0.37 |
||
|
39
|
39
93891-0501800 Screw-washer (5x18) |
93891-0501800 |
US $0.44 |
||
|
40
|
40
93894-050-220-0 Screw wash 5x22 |
93894-050-220-0 |
US $0.52 |
||
|
41
|
41
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
42
|
42
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
43
|
43
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
44
|
44
95701-060-220-8 BoltFLANGE, 6X22 |
95701-060-220-8 |
from US $0.65 |
||
|
45
|
45
98200-11500 Fuse (15a) |
98200-11500 |
from US $0.59 |
||
|
47
|
47
98200-52000 Fuse f (20a) |
98200-52000 |
from US $0.59 |
||
