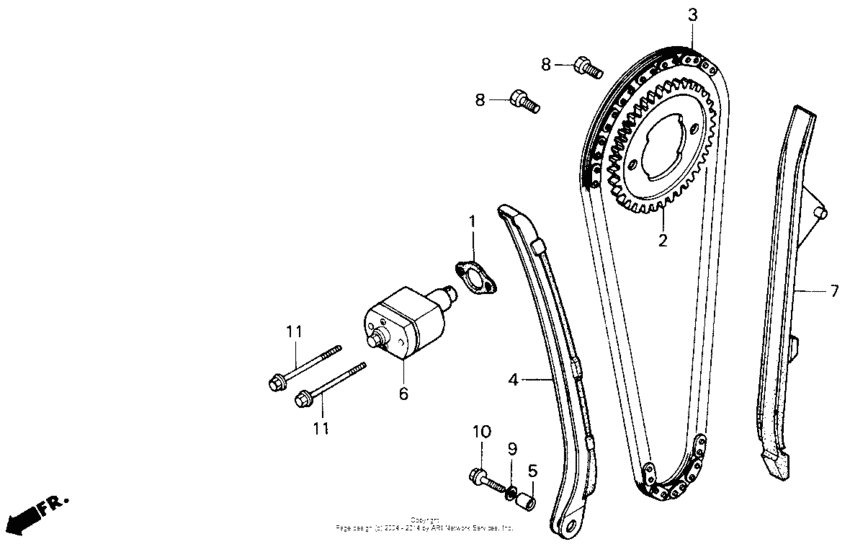

Cam chain Diagram Honda TRX 250 FourTrax 250
- Model code
- TRX250 A
- Engine Capacity
- 250
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TE060*GC100011 - JH3TE060*GC175567
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12194-HC5-740 Gasket |
12194-HC5-740 |
from US $1.42 |
||
|
2
|
2
14321-HA0-010
Sprocket,cam
|
14321-HA0-010 |
— | ||
|
3
|
3
14401-MR4-901 Chain,cam |
14401-MR4-901 |
from US $72.12 |
||
|
4
|
4
14511-HA0-000
Tension,cam chain
|
14511-HA0-000 |
— | ||
|
5
|
5
14515-KF0-000 Collar (6x9) |
14515-KF0-000 |
from US $3.48 |
||
|
6
|
6
14520-HA0-003
Lifter,tnsioner
|
14520-HA0-003 |
— | ||
|
7
|
7
14620-HA0-003
Guide,cam chain
|
14620-HA0-003 |
— | ||
|
8
|
8
90082-HA0-000 Bolt (7x10.5) |
90082-HA0-000 |
from US $2.59 |
||
|
9
|
9
90417-360-000 Washer, drum stopper |
90417-360-000 |
from US $2.22 |
||
|
10
|
10
95801-0602500 Bolt, flange, 6x25Use up to Engine SN 5151530 |
95801-0602500 |
from US $0.59 |
||
|
11
|
11
96001-060-450-0 Bolt, flange (6x45)Use up to Engine SN 5112009 |
96001-060-450-0 |
from US $0.81 |
