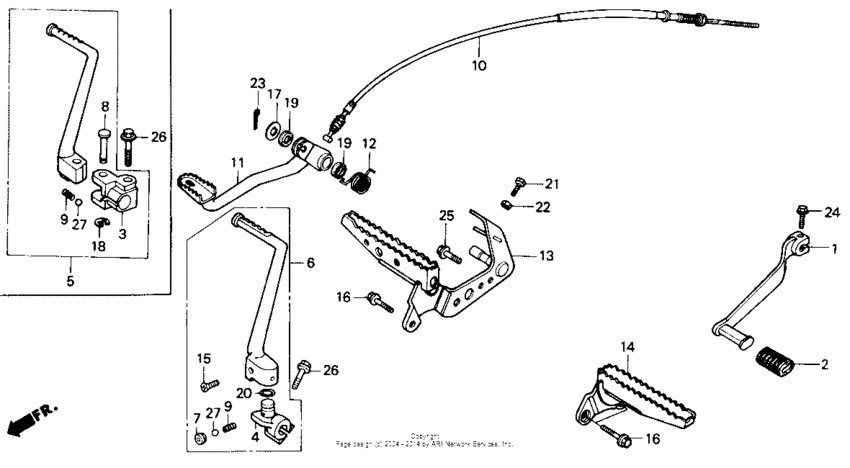

Step Diagram Honda TRX 250 FourTrax 250
- Model code
- TRX250 A
- Engine Capacity
- 250
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TE060*GC100011 - JH3TE060*GC175567
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-HA0-680
Pedal comp.,chang
|
24700-HA0-680 |
— | ||
|
2
|
2
24781-371-000 Rubber |
24781-371-000 |
from US $3.47 |
||
|
4
|
4
28241-HA6-680
Joint, kick arm
Use from Frame SN GC112180 |
28241-HA6-680 |
— | ||
|
4
|
4
28241-HA8-680
Joint,kick arm
Use up to Frame SN GC112179 |
28241-HA8-680 |
— | ||
|
6
|
6
28300-HC4-750
Arm, kick starter
Use up to Frame SN GC112179 |
28300-HC4-750 |
— | ||
|
7
|
7
28302-965-000 Plug, kick arm |
28302-965-000 |
from US $2.39 |
||
|
9
|
9
28333-124-000 Spring |
28333-124-000 |
from US $2.44 |
||
|
10
|
10
43470-HA8-770
Cable,foot brake
|
43470-HA8-770 |
— | ||
|
11
|
11
46500-HA8-000
Pedal, rr. brake
|
46500-HA8-000 |
— | ||
|
12
|
12
46514-HA0-000
Spg.brk.pedal
|
46514-HA0-000 |
— | ||
|
13
|
13
50611-HA8-680
Bar comp.,r.step
|
50611-HA8-680 |
— | ||
|
14
|
14
50621-HA8-680
Bar comp.,l.step
|
50621-HA8-680 |
— | ||
|
15
|
15
90104-965-003 Screw (6x28) |
90104-965-003 |
US $3.63 |
||
|
16
|
16
90163-HA8-000 Bolt,ubs,10x48 |
90163-HA8-000 |
from US $6.48 |
||
|
17
|
17
90512-303-000 Washer (17.5mm) |
90512-303-000 |
from US $1.92 |
||
|
19
|
19
91206-968-003 Dust seal, 17x23x3 (nok) |
91206-968-003 |
from US $4.07 |
||
|
20
|
20
91353-671-003 O-ring14MM (ARAI) |
91353-671-003 |
from US $1.92 |
||
|
21
|
21
92025-06025-0A Bolt,hex.,6x25 |
92025-06025-0A |
from US $0.52 |
||
|
22
|
22
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
23
|
23
94201-16120 PinSPLIT, 1.6X12 |
94201-16120 |
from US $0.37 |
||
|
24
|
24
90118-968-000 Bolt, flange (6x20) |
90118-968-000 |
from US $2.29 |
||
|
25
|
25
95701-100-280-8 BoltFLANGE, 10X28 |
95701-100-280-8 |
from US $0.81 |
||
|
26
|
26
95701-0803200 Bolt, flange, 8x32Use up to Frame SN GC112179 |
95701-0803200 |
from US $0.74 |
||
|
26
|
26
95701-0802800 Bolt, flange, 8x28Use from Frame SN GC112180 |
95701-0802800 |
from US $0.74 |
||
|
27
|
27
96211-08000 Ball |
96211-08000 |
from US $0.22 |
