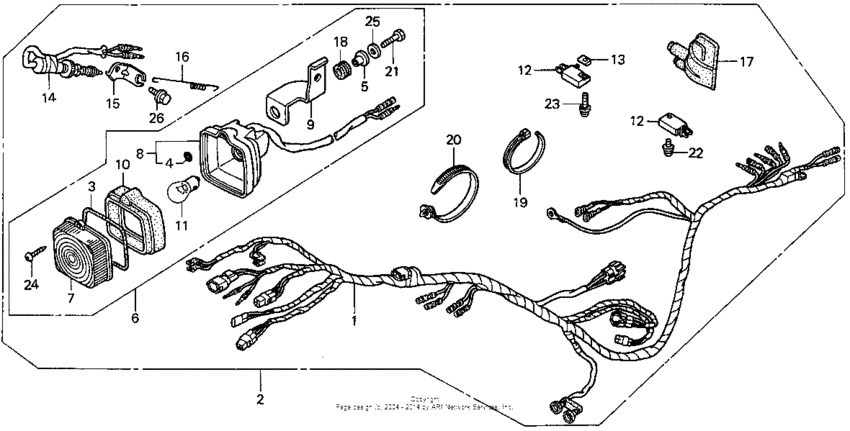

Stop light kit-- maine state 97-98 Diagram Honda TRX 250 Recon 250 ES
- Model code
- TRX250 AM
- Engine Capacity
- 250
- Year
- 1997
- Sales region
- USA
- Frame
- 478TE210*VA000001 -
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Recon 250 ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32100-HM8-690 Wire harness |
32100-HM8-690 |
US $186.13 |
||
|
2
|
2
33080-HM8-690
Set,stop light
|
33080-HM8-690 |
— | ||
|
3
|
3
33407-166-611 Gasket |
33407-166-611 |
from US $4.14 |
||
|
4
|
4
33408-166-611 Seal, gasket |
33408-166-611 |
from US $2.59 |
||
|
5
|
5
33715-MC4-610 Collar |
33715-MC4-610 |
from US $2.66 |
||
|
6
|
6
33810-HM8-690 Light assy., stop |
33810-HM8-690 |
US $63.50 |
||
|
7
|
7
33812-HF1-830 Lens, stop light |
33812-HF1-830 |
from US $8.47 |
||
|
8
|
8
33813-HC4-830 Base, stop light |
33813-HC4-830 |
US $43.80 |
||
|
9
|
9
33815-HM8-690 Stay, stop light |
33815-HM8-690 |
US $13.07 |
||
|
10
|
10
33850-HF1-831 Rubber |
33850-HF1-831 |
US $13.26 |
||
|
11
|
11
34905-KN8-003 Bulb (12v21cp) |
34905-KN8-003 |
from US $2.96 |
||
|
12
|
12
35340-HR0-305 Switch, fr. stop |
35340-HR0-305 |
US $22.98 |
||
|
12
|
12
35340-ML4-005 Switch assy., fr. stop (tateishi) |
35340-ML4-005 |
from US $13.91 |
||
| replacement | |||||
|
12
|
12
35340-HR0-305 Switch, fr. stop |
35340-HR0-305 |
US $22.98 |
||
|
13
|
13
35345-HF1-830 Collar, stop switch |
35345-HF1-830 |
from US $3.18 |
||
|
14
|
14
35350-HM8-691
Switch, rr. stop
|
35350-HM8-691 |
— | ||
|
15
|
15
35351-HM8-690 Stay, stop switch |
35351-HM8-690 |
US $10.05 |
||
|
16
|
16
35357-HM8-691 Spring, stop switch |
35357-HM8-691 |
US $6.94 |
||
|
17
|
17
53177-HF1-830
Cover, l. handlebar
|
53177-HF1-830 |
— | ||
|
18
|
18
80101-283-000 Rubber, rr. fender cushion |
80101-283-000 |
from US $4.29 |
||
|
19
|
19
90652-KT1-771 Band, wire (black) |
90652-KT1-771 |
from US $2.29 |
||
|
20
|
20
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
21
|
21
92101-05020-0A Bolt, hex., 5x20 |
92101-05020-0A |
from US $0.38 |
||
|
22
|
22
93893-040-140-7 Screw-washer4X14 |
93893-040-140-7 |
from US $0.52 |
||
|
23
|
23
93893-0402007 Screw-washer, 4x20 |
93893-0402007 |
from US $0.55 |
||
|
24
|
24
93901-14480 ScrewTAPPING, 4X16 |
93901-14480 |
US $0.37 |
||
|
25
|
25
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
26
|
26
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
