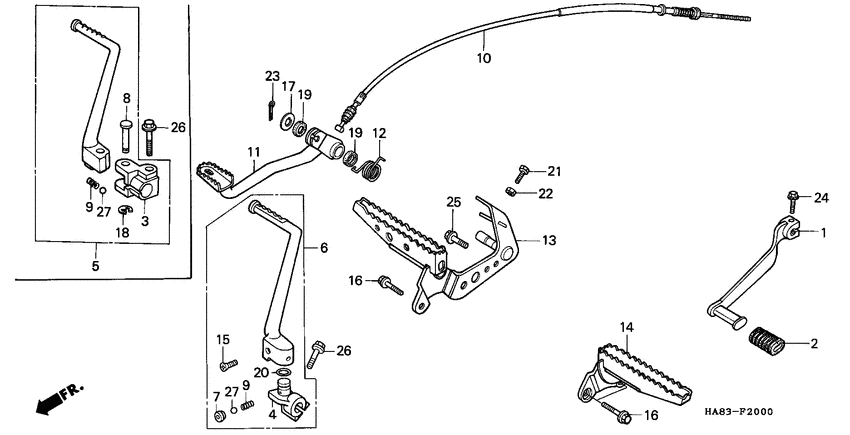

Step/pedal Diagram Honda TRX 250 FourTrax 250
- Model code
- TRX250F
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- Latin America
- Frame
- JH3TE060*FC013486 - JH3TE060*FC013486
- Engine
- TE06E5000031 - TE06E5059066
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-HA0-000
Pedal,gear change
|
24700-HA0-000 |
— | ||
| replacement | |||||
|
1
|
1
24700-HA0-680
Pedal comp.,chang
|
24700-HA0-680 |
— | ||
|
2
|
2
24781-371-000 Rubber |
24781-371-000 |
from US $3.47 |
||
|
3
|
3
28241-HA8-000
Joint, kick arm
|
28241-HA8-000 |
— | ||
|
5
|
5
28300-HA8-000
Arm assy,kick sta
|
28300-HA8-000 |
— | ||
|
8
|
8
28321-HA6-000
Pin, kick starter
|
28321-HA6-000 |
— | ||
|
9
|
9
28333-124-000 Spring |
28333-124-000 |
from US $2.44 |
||
|
10
|
10
43470-HA8-000
Cable,foot brake
|
43470-HA8-000 |
— | ||
|
11
|
11
46500-HA8-000
Pedal, rr. brake
|
46500-HA8-000 |
— | ||
|
12
|
12
46514-HA0-000
Spg.brk.pedal
|
46514-HA0-000 |
— | ||
|
13
|
13
50611-HA8-000
Bar comp r step
|
50611-HA8-000 |
— | ||
| replacement | |||||
|
13
|
13
50611-HA8-680
Bar comp.,r.step
|
50611-HA8-680 |
— | ||
|
14
|
14
50621-HA8-000
Bar comp l step
|
50621-HA8-000 |
— | ||
| replacement | |||||
|
14
|
14
50621-HA8-680
Bar comp.,l.step
|
50621-HA8-680 |
— | ||
|
16
|
16
90163-HA8-000 Bolt,ubs,10x48 |
90163-HA8-000 |
from US $6.48 |
||
|
17
|
17
90512-303-000 Washer (17.5mm) |
90512-303-000 |
from US $1.92 |
||
|
18
|
18
90601-473-003 E-ring, 8mm |
90601-473-003 |
from US $2.22 |
||
|
19
|
19
91206-968-003 Dust seal, 17x23x3 (nok) |
91206-968-003 |
from US $4.07 |
||
|
19
|
19
91206-968-004 Dust seal (17x23x3) |
91206-968-004 |
US $3.49 |
||
| replacement | |||||
|
19
|
19
91206-968-003 Dust seal, 17x23x3 (nok) |
91206-968-003 |
from US $4.07 |
||
|
21
|
21
92022-06025-0A Bolt,hex.,6x25 |
92022-06025-0A |
from US $0.52 |
||
| replacement | |||||
|
21
|
21
92025-06025-0A Bolt,hex.,6x25 |
92025-06025-0A |
from US $0.52 |
||
|
22
|
22
94001-060-000-S
Nut
|
94001-060-000-S |
— | ||
| replacement | |||||
|
22
|
22
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
23
|
23
94201-16120 PinSPLIT, 1.6X12 |
94201-16120 |
from US $0.37 |
||
|
24
|
24
95700-060-200-8
Bolt
|
95700-060-200-8 |
— | ||
| replacement | |||||
|
24
|
24
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
25
|
25
95800-100-280-8 BoltFLANGE, 10X28 |
95800-100-280-8 |
from US $0.81 |
||
| replacement | |||||
|
25
|
25
95701-100-280-8 BoltFLANGE, 10X28 |
95701-100-280-8 |
from US $0.81 |
||
|
26
|
26
95900-080-320-0 Bolt, flange, 8x32 |
95900-080-320-0 |
from US $0.74 |
||
| replacement | |||||
|
26
|
26
95701-0803200 Bolt, flange, 8x32 |
95701-0803200 |
from US $0.74 |
||
|
27
|
27
96211-08000 Ball |
96211-08000 |
from US $0.22 |
||
