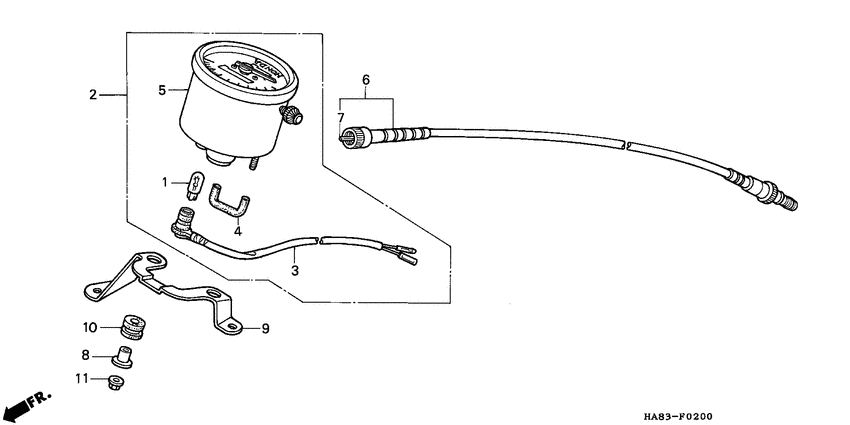

Meter Diagram Honda TRX 250 FourTrax 250
- Model code
- TRX250G
- Engine Capacity
- 250
- Year
- 1986
- Sales region
- Australia
- Frame
- JH3TE060*GC111131 - JH3TE060*GC169076
- Engine
- TE06E5103581 - TE06E5161770
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34908-GA7-701 Bulb, wedge base (t10) (12v 3.4w) (nippon seiki) |
34908-GA7-701 |
from US $2.15 |
||
| replacement | |||||
|
1
|
1
37237-SA5-003 Bulb14V 3.4W) (NS |
37237-SA5-003 |
from US $2.15 |
||
|
2
|
2
37200-HA8-631
Speedometer assy
|
37200-HA8-631 |
— | ||
|
3
|
3
37202-HA8-630
Socket comp.
|
37202-HA8-630 |
— | ||
|
4
|
4
37203-HA8-630
Tube,breather
|
37203-HA8-630 |
— | ||
|
5
|
5
37210-HA8-630
Speedometer comp
|
37210-HA8-630 |
— | ||
|
6
|
6
44830-HA8-630
Cable assy.,speed
|
44830-HA8-630 |
— | ||
|
7
|
7
44831-KA2-000
Cable (inner)
|
44831-KA2-000 |
— | ||
| replacement | |||||
|
7
|
7
44831-GJ3-600
Cable (inner)
|
44831-GJ3-600 |
— | ||
|
8
|
8
61104-MA6-720 Collar,wink.brkt |
61104-MA6-720 |
US $4.07 |
||
| replacements | |||||
|
8
|
8
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
|
8
|
8
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.07 |
||
|
9
|
9
61105-HA8-630
Stay
|
61105-HA8-630 |
— | ||
|
10
|
10
64216-GJ2-730 Rubber, screen setting |
64216-GJ2-730 |
from US $2.66 |
||
|
11
|
11
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
