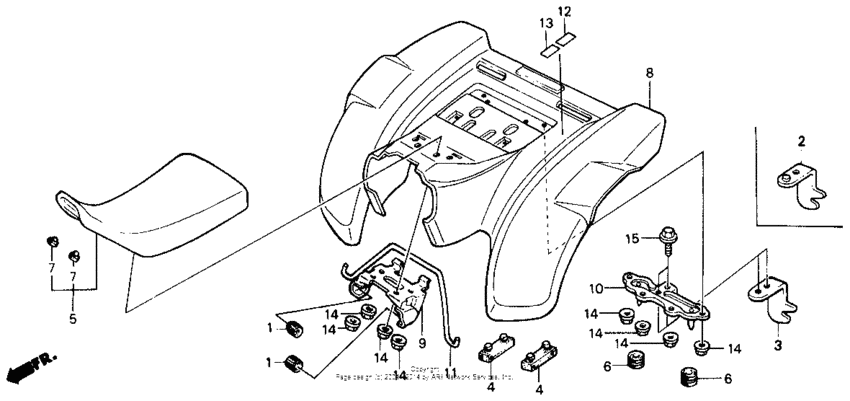

Rear fender 86,87 Diagram Honda TRX 250 TRX250R
- Model code
- TRX250R A
- Engine Capacity
- 250
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TE120*GC000013 - JH3TE120*GC021064
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- TRX250R
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17611-HA5-000 Rubber, fr |
17611-HA5-000 |
from US $4.74 |
||
|
2
|
2
50223-HB9-000
Plate, seat lock
|
50223-HB9-000 |
— | ||
|
4
|
4
50815-HA2-000
Rubber, rr
|
50815-HA2-000 |
— | ||
|
5
|
5
77100-HB9-405
Seat comp. *r82l*
|
77100-HB9-405 |
— | ||
|
6
|
6
77207-HB9-000 Rubber, seat setting |
77207-HB9-000 |
from US $6.33 |
||
|
7
|
7
77215-GC2-000 Rubber b |
77215-GC2-000 |
from US $3.42 |
||
|
8
|
8
80100-HB9-405
Fender, rr. *nh138*
|
80100-HB9-405 |
— | ||
|
9
|
9
80101-HB9-000
Catch, rr. fender
|
80101-HB9-000 |
— | ||
|
10
|
10
80102-HB9-000
Plate, seat lock
|
80102-HB9-000 |
— | ||
|
11
|
11
80116-HB9-000
Stay, fender support
|
80116-HB9-000 |
— | ||
|
14
|
14
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
15
|
15
96300-0601000 Bolt, flange (6x10) |
96300-0601000 |
from US $0.59 |
