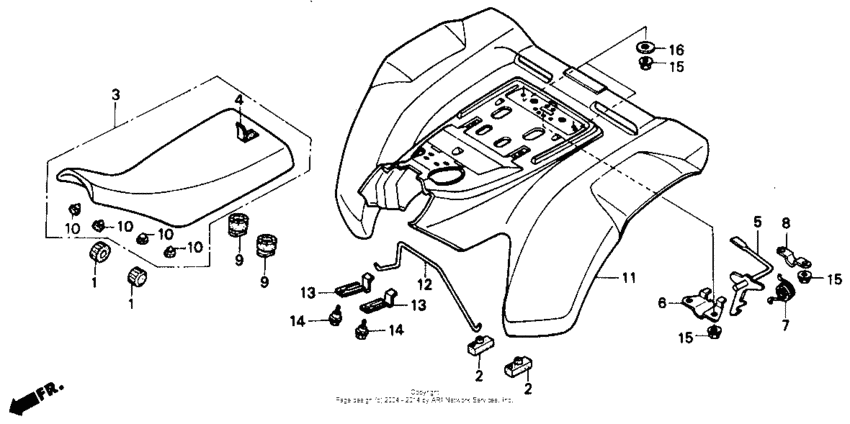

Rear fender 88 Diagram Honda TRX 250 TRX250R
- Model code
- TRX250R A
- Engine Capacity
- 250
- Year
- 1988
- Sales region
- USA
- Frame
- JH3TE120*JK200011 - JH3TE120*JK209449
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- TRX250R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17611-HA5-000 Rubber, fr |
17611-HA5-000 |
from US $4.74 |
||
|
2
|
2
50815-HA2-670 Rubber, rr |
50815-HA2-670 |
from US $12.03 |
||
|
3
|
3
77100-HB9-P00ZA
Seat comp *nh1l*
|
77100-HB9-P00ZA |
— | ||
|
4
|
4
77101-HB9-770ZA
Cover, seat *r94l*
|
77101-HB9-770ZA |
— | ||
|
5
|
5
77105-HC0-000 Lever, seat lock |
77105-HC0-000 |
from US $16.59 |
||
|
6
|
6
77106-HC0-000 Bracket, lock lever |
77106-HC0-000 |
from US $5.48 |
||
|
7
|
7
77107-HA7-670
Spring, seat lock
|
77107-HA7-670 |
— | ||
|
8
|
8
77108-HC0-000 Brkt, rr. lock lever |
77108-HC0-000 |
US $6.63 |
||
|
9
|
9
77207-HA0-000 Rubber, seat setting |
77207-HA0-000 |
from US $4.74 |
||
|
10
|
10
77215-GC2-000 Rubber b |
77215-GC2-000 |
from US $3.42 |
||
|
11
|
11
80100-HB9-306ZA
Fender, rr. *r134*
|
80100-HB9-306ZA |
— | ||
|
12
|
12
80116-HB9-000
Stay, fender support
|
80116-HB9-000 |
— | ||
|
13
|
13
80117-HB9-770
Brkt, fender support
|
80117-HB9-770 |
— | ||
|
14
|
14
90110-MG9-700 Bolt, flange (6mm) |
90110-MG9-700 |
from US $3.16 |
||
|
15
|
15
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
16
|
16
94103-06000 WasherPLAIN, 6MM |
94103-06000 |
from US $0.37 |
