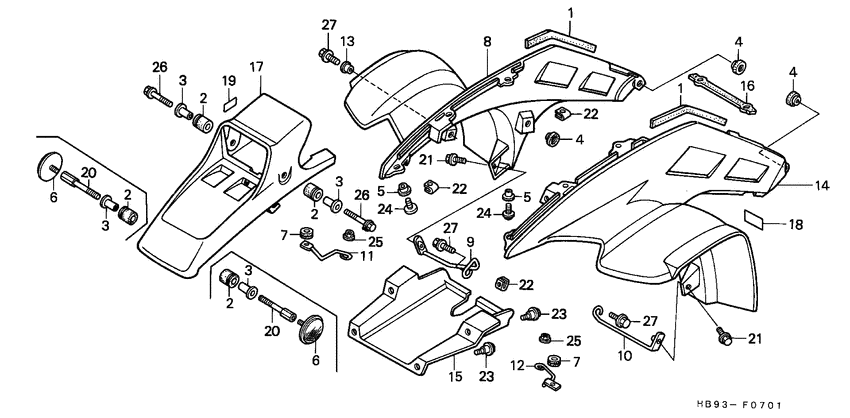

Front fender (2) Diagram Honda TRX 250 TRX250R
- Model code
- TRX250RJ
- Engine Capacity
- 250
- Year
- 1988
- Sales region
- Europe
- Frame
- JH3TE120*JK202234 - JH3TE120*JK209534
- Engine
- TB06E8102183 - TB06E8109539
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- TRX250R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17503-HB9-770 Rubber |
17503-HB9-770 |
US $10.98 |
||
| replacement | |||||
|
1
|
1
17503-HB9-771
Rubber
|
17503-HB9-771 |
— | ||
|
2
|
2
17508-KA3-710 Rubber |
17508-KA3-710 |
from US $5.92 |
||
|
3
|
3
17509-HB9-770
Collar
|
17509-HB9-770 |
— | ||
|
4
|
4
19034-HB9-000 Grommet, fr. |
19034-HB9-000 |
from US $4.07 |
||
|
5
|
5
33712-GC2-000 Collar a, taillight |
33712-GC2-000 |
from US $3.11 |
||
|
7
|
7
53133-KB4-000 Grommet |
53133-KB4-000 |
from US $2.29 |
||
|
8
|
8
61100-HB9-770ZA
Fdr, r. fr. *r134*
|
61100-HB9-770ZA |
— | ||
| replacement | |||||
|
8
|
8
61100-HB9-306ZA
Fdr, r. fr. *r134*
|
61100-HB9-306ZA |
— | ||
|
9
|
9
61101-HB9-770
Stay, r. fr.
|
61101-HB9-770 |
— | ||
|
10
|
10
61102-HB9-670
Stay, l. fr.
|
61102-HB9-670 |
— | ||
|
11
|
11
61111-HB9-000
Stay, r
|
61111-HB9-000 |
— | ||
|
12
|
12
61112-HB9-000
Stay, l
|
61112-HB9-000 |
— | ||
|
13
|
13
61142-001-010 Metal, fr. (lower) |
61142-001-010 |
from US $3.18 |
||
|
14
|
14
61200-HB9-770ZA
Fdr, l. fr. *r134*
|
61200-HB9-770ZA |
— | ||
| replacement | |||||
|
14
|
14
61200-HB9-305ZA
Fdr, l. fr. *r134*
|
61200-HB9-305ZA |
— | ||
|
15
|
15
61400-HB9-770
Cover, fr. fender
|
61400-HB9-770 |
— | ||
|
16
|
16
61502-HB9-000
Band, side cover
|
61502-HB9-000 |
— | ||
|
17
|
17
61700-HB9-770ZA
Cover, fr. *r134*
|
61700-HB9-770ZA |
— | ||
| replacement | |||||
|
17
|
17
61700-HB9-305ZA
Cover, fr. *r134*
|
61700-HB9-305ZA |
— | ||
|
19
|
19
87511-VM6-720
Label
|
87511-VM6-720 |
— | ||
|
21
|
21
90111-187-000 BoltFLANGE, 6MM |
90111-187-000 |
from US $4 |
||
|
22
|
22
90320-HB9-000 Nut, spring (5mm) |
90320-HB9-000 |
from US $2.37 |
||
|
23
|
23
90322-HB9-770
Screw, fr. fender
|
90322-HB9-770 |
— | ||
|
24
|
24
93500-050-140-A ScrewPAN, 5X14 |
93500-050-140-A |
from US $0.37 |
||
|
25
|
25
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
26
|
26
96300-0603800 Bolt, flange (6x38) |
96300-0603800 |
US $0.74 |
||
|
27
|
27
96300-0801600 Bolt, flange (8x16) |
96300-0801600 |
from US $0.74 |
||
