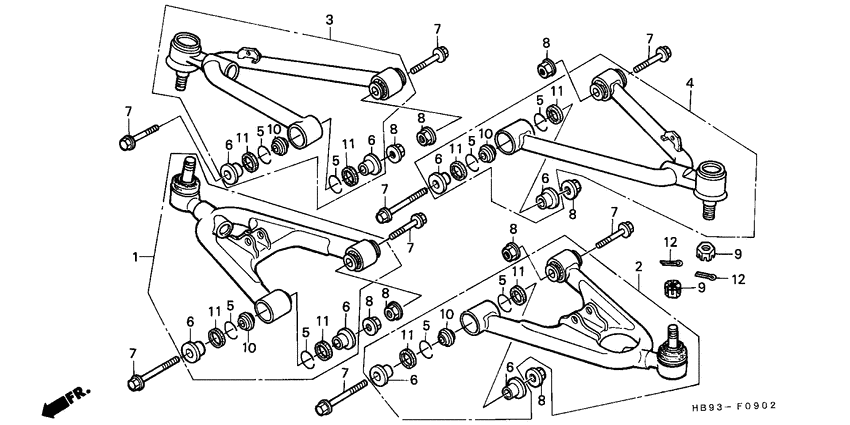

Front arm (3) Diagram Honda TRX 250 TRX250R
- Model code
- TRX250RJ
- Engine Capacity
- 250
- Year
- 1988
- Sales region
- Canada
- Frame
- JH3TE120*JK200306 - JH3TE120*JK205520
- Engine
- TB06E8100035 - TB06E8105525
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- TRX250R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51350-HB9-770
Arm, r. fr. (lower)
|
51350-HB9-770 |
— | ||
|
2
|
2
51360-HB9-770
Arm, l. fr. (lower)
|
51360-HB9-770 |
— | ||
|
3
|
3
51370-HB9-770
Arm, r. fr. (upper)
|
51370-HB9-770 |
— | ||
|
4
|
4
51380-HB9-770
Arm, l. fr. (upper)
|
51380-HB9-770 |
— | ||
|
5
|
5
51393-HB9-670 Ring, stopper |
51393-HB9-670 |
from US $3.11 |
||
|
6
|
6
51394-HB9-670
Colr, fr. arm pivot
|
51394-HB9-670 |
— | ||
|
7
|
7
90150-MK2-770 Bolt, flange (10x72) |
90150-MK2-770 |
US $8.45 |
||
| replacement | |||||
|
7
|
7
90129-KAS-900 Bolt, flange (10x71) |
90129-KAS-900 |
from US $7.99 |
||
|
8
|
8
90305-HC0-770 Nut, self-lock, 10mm |
90305-HC0-770 |
from US $2.66 |
||
|
9
|
9
90310-HB9-000 Nut, castle (12mm) |
90310-HB9-000 |
from US $3.63 |
||
|
10
|
10
91077-HB9-671 Bearing (10mm) |
91077-HB9-671 |
US $35.24 |
||
| replacement | |||||
|
10
|
10
91077-HB9-672 Bearing (10mm) |
91077-HB9-672 |
from US $13.74 |
||
|
10
|
10
91077-HB9-672 Bearing (10mm) |
91077-HB9-672 |
from US $13.74 |
||
|
11
|
11
91265-HB9-671 Dust seal, fr. |
91265-HB9-671 |
from US $3.26 |
||
|
12
|
12
94201-30200 PinSPLIT, 3.0X20 |
94201-30200 |
from US $0.23 |
||
| replacements | |||||
|
12
|
12
9420130280 Pin, split, 3.0x28 |
9420130280 |
from US $0.44 |
||
|
12
|
12
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
