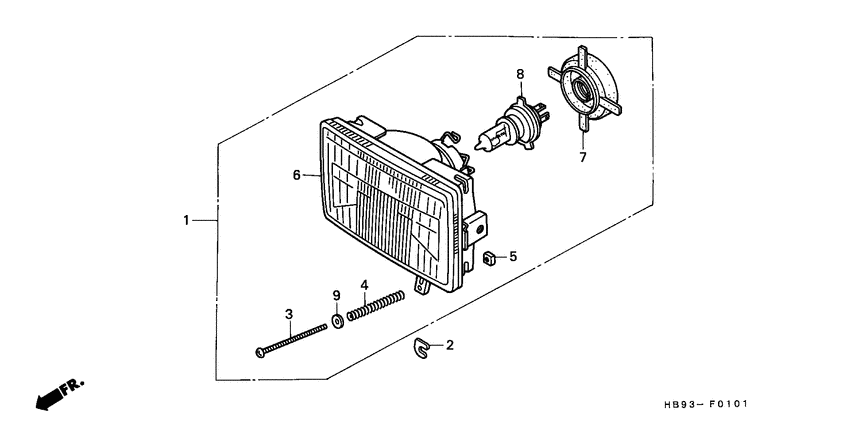

Headlight (2) Diagram Honda TRX 250 TRX250R
- Model code
- TRX250RK
- Engine Capacity
- 250
- Year
- 1989
- Sales region
- Europe
- Frame
- JH3TE120*KK300005 - JH3TE120*KK304172
- Engine
- TB06E8200005 - TB06E8208442
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- TRX250R
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-HB9-771
Hdlt (12v 60/55w)
|
33100-HB9-771 |
— | ||
|
2
|
2
33101-HB9-770
Washer
|
33101-HB9-770 |
— | ||
|
3
|
3
33103-415-003 Screw |
33103-415-003 |
US $2.43 |
||
| replacement | |||||
|
3
|
3
33103-MM2-003 Screw, beam adj. |
33103-MM2-003 |
from US $2.29 |
||
|
4
|
4
33107-KJ9-003
Spring
|
33107-KJ9-003 |
— | ||
|
5
|
5
33118-438-841 Nut, beam adj. |
33118-438-841 |
from US $2.29 |
||
|
6
|
6
33120-HB9-771
Headlight unit
|
33120-HB9-771 |
— | ||
|
7
|
7
33180-HA2-671 Cover, rubber |
33180-HA2-671 |
US $16.56 |
||
|
8
|
8
34901-MC7-601 Bulb (12v 60/55w) |
34901-MC7-601 |
from US $37.60 |
||
| replacement | |||||
|
8
|
8
34901-MC7-601AH Bulb (12v60/55w) |
34901-MC7-601AH |
US $38.35 |
||
|
9
|
9
94101-04800 WasherPLAIN, 4MM |
94101-04800 |
from US $0.37 |
||
