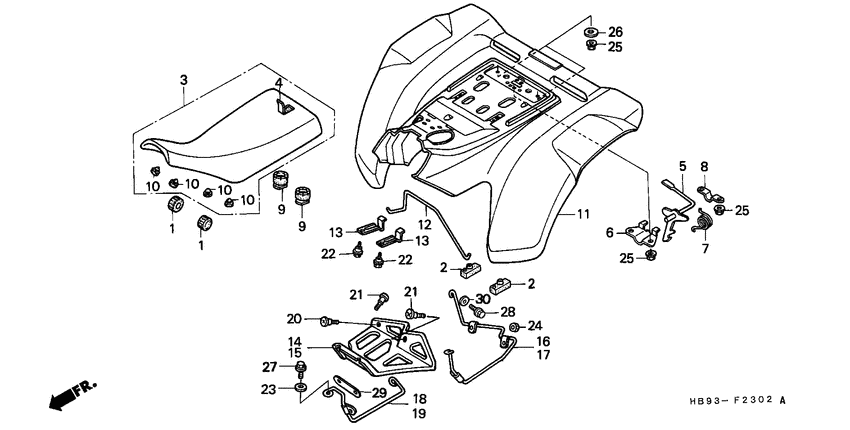

Rear fender/seat (3) Diagram Honda TRX 250 TRX250R
- Model code
- TRX250RK
- Engine Capacity
- 250
- Year
- 1989
- Sales region
- Europe
- Frame
- JH3TE120*KK300005 - JH3TE120*KK304172
- Engine
- TB06E8200005 - TB06E8208442
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- TRX250R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17611-HA5-000 Rubber, fr |
17611-HA5-000 |
from US $4.74 |
||
|
2
|
2
50815-HA2-670 Rubber, rr |
50815-HA2-670 |
from US $12.03 |
||
|
3
|
3
77100-HB9-790ZA
Seat comp.*r-94l*
- KK304072 |
77100-HB9-790ZA |
— | ||
|
3
|
3
77100-HB9-791ZA
Seat comp. *r94l*
KK304073 - |
77100-HB9-791ZA |
— | ||
|
4
|
4
77101-HB9-790ZA
Leather co*r-94l*
|
77101-HB9-790ZA |
— | ||
|
5
|
5
77105-HC0-000 Lever, seat lock |
77105-HC0-000 |
from US $16.59 |
||
|
6
|
6
77106-HC0-000 Bracket, lock lever |
77106-HC0-000 |
from US $5.48 |
||
|
7
|
7
77107-HA7-670
Spring, seat lock
|
77107-HA7-670 |
— | ||
|
8
|
8
77108-HC0-000 Brkt, rr. lock lever |
77108-HC0-000 |
US $6.63 |
||
|
9
|
9
77207-HA0-000 Rubber, seat setting |
77207-HA0-000 |
from US $4.74 |
||
|
10
|
10
77215-GC2-000 Rubber b |
77215-GC2-000 |
from US $3.42 |
||
|
11
|
11
80100-HB9-770ZA
Fender, rr. *r134*
|
80100-HB9-770ZA |
— | ||
| replacement | |||||
|
11
|
11
80100-HB9-306ZA
Fender, rr. *r134*
|
80100-HB9-306ZA |
— | ||
|
12
|
12
80116-HB9-000
Stay, fender support
|
80116-HB9-000 |
— | ||
|
13
|
13
80117-HB9-770
Brkt, fender support
|
80117-HB9-770 |
— | ||
|
14
|
14
80121-HB9-741
Mudguard, r. rr.
|
80121-HB9-741 |
— | ||
|
15
|
15
80122-HB9-741
Mudguard, l. rr.
|
80122-HB9-741 |
— | ||
|
16
|
16
80123-HB9-741
Stay, r. mudguard
|
80123-HB9-741 |
— | ||
|
17
|
17
80124-HB9-741
Stay, l. mudguard
|
80124-HB9-741 |
— | ||
|
18
|
18
80126-HB9-741
Stay, r. mudguard
|
80126-HB9-741 |
— | ||
|
19
|
19
80127-HB9-741
Stay, l. mudguard
|
80127-HB9-741 |
— | ||
|
20
|
20
90103-HB9-740 Screw (6x20) |
90103-HB9-740 |
from US $2.29 |
||
|
21
|
21
90103-HC4-770 Screw, mudguard |
90103-HC4-770 |
from US $2.37 |
||
|
22
|
22
90110-MG9-700 Bolt, flange (6mm) |
90110-MG9-700 |
from US $3.16 |
||
|
23
|
23
90401-ZA0-000 Washer, plain, 6.5x15 |
90401-ZA0-000 |
from US $0.89 |
||
|
24
|
24
94001-060-000-S
Nut
|
94001-060-000-S |
— | ||
| replacement | |||||
|
24
|
24
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
25
|
25
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
26
|
26
94103-06000 WasherPLAIN, 6MM |
94103-06000 |
from US $0.37 |
||
|
27
|
27
95701-0602200 Bolt, flange, 6x22 |
95701-0602200 |
from US $0.59 |
||
|
28
|
28
90181-HB9-770 Bolt, flange (6x16) |
90181-HB9-770 |
from US $1.70 |
||
|
29
|
29
80131-HB9-740
Holder, mudguard
KK302873 - |
80131-HB9-740 |
— | ||
|
30
|
30
94103-06000 WasherPLAIN, 6MM |
94103-06000 |
from US $0.37 |
||
