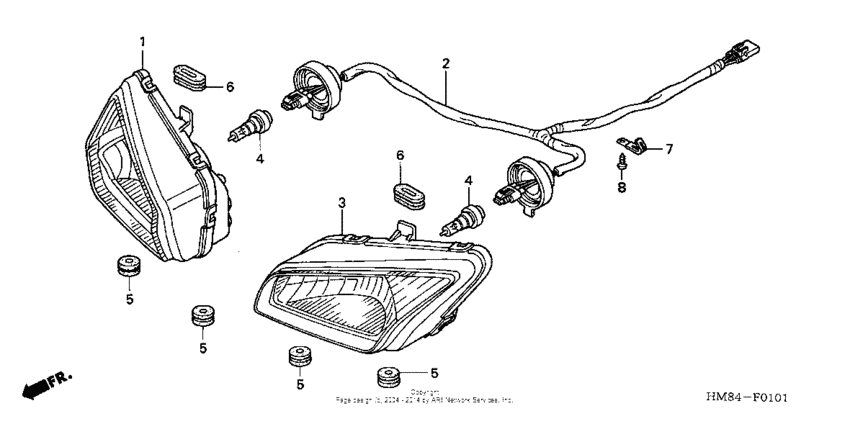

Headlight ('05) Diagram Honda TRX 250 Recon 250 ES
- Model code
- TRX250TE A
- Engine Capacity
- 250
- Year
- 2005
- Sales region
- USA
- Frame
- 1HFTE214*54500001 -
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Recon 250 ES
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33110-HM8-B00 Headlight unit, r. |
33110-HM8-B00 |
US $151.90 |
||
|
2
|
2
33130-HM8-B00 Socket, headlight |
33130-HM8-B00 |
US $52.65 |
||
|
3
|
3
33160-HM8-B00 Headlight unit, l. |
33160-HM8-B00 |
US $151.90 |
||
|
4
|
4
34901-HM8-B01
Bulb (12v 25/25w)
|
34901-HM8-B01 |
— | ||
| replacement | |||||
|
4
|
4
34901-HP0-A01 Bulb, headlight |
34901-HP0-A01 |
US $42.79 |
||
|
5
|
5
80219-HC4-000 Rubber, taillight mounting |
80219-HC4-000 |
from US $2.72 |
||
|
6
|
6
83601-MB0-000 Grommet a, side cover |
83601-MB0-000 |
from US $2.95 |
||
|
7
|
7
90010-GE0-710 Clip, tubeUse up to Frame SN 54503794 |
90010-GE0-710 |
from US $2.59 |
||
|
7
|
7
91410-KT7-000 Clip (4x60)Use from Frame SN 54503795 |
91410-KT7-000 |
from US $3.11 |
||
|
8
|
8
93903-25220 ScrewTAPPING, 5X12 |
93903-25220 |
from US $0.38 |
||
