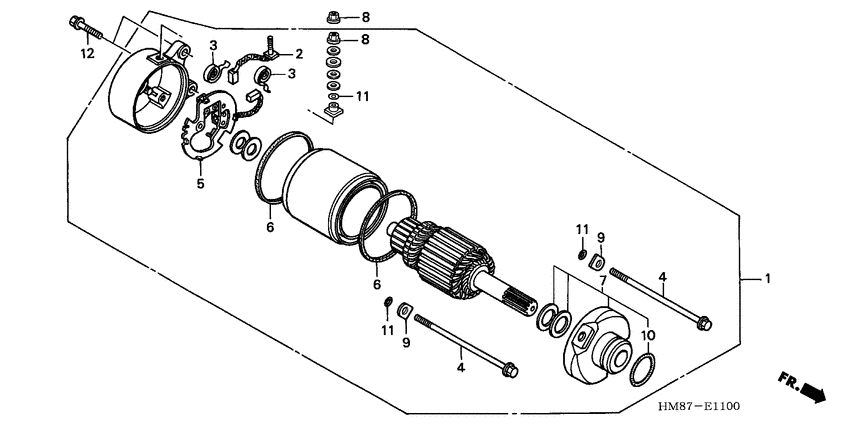

Starting motor (TRX250TM6/7,TRX250TE6/7) Diagram Honda TRX 250 FourTrax 250 ES
- Model code
- TRX250TE7
- Engine Capacity
- 250
- Year
- 2007
- Sales region
- Australia
- Frame
- 1HFTE21U*74750001 - 1HFTE21U*74799999
- Engine
- TE21E9100001 - TE21E9199999
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 250 ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31200-HM8-A41 Motor assy., starter |
31200-HM8-A41 |
US $435.15 |
||
|
2
|
2
31201-KS5-901 Terminal set, brush |
31201-KS5-901 |
from US $11.88 |
||
|
3
|
3
31204-KS5-901 Spring, carbon brush |
31204-KS5-901 |
from US $3.18 |
||
|
4
|
4
31205-KL8-711 Bolt, setting |
31205-KL8-711 |
from US $2.74 |
||
|
5
|
5
31206-MN4-008 Holder set, brush |
31206-MN4-008 |
from US $12.47 |
||
|
6
|
6
31207-KS5-901 Ring |
31207-KS5-901 |
from US $3.63 |
||
|
7
|
7
31210-HC4-003 Bracket, fr |
31210-HC4-003 |
from US $44.65 |
||
|
8
|
8
90071-MB0-000 Nut-washer, 6mm |
90071-MB0-000 |
from US $2.22 |
||
|
9
|
9
90122-MN4-008 Washer, steel plate |
90122-MN4-008 |
from US $1.92 |
||
|
10
|
10
91309-425-003 O-ring (24.4x3.1) |
91309-425-003 |
from US $3.92 |
||
| replacement | |||||
|
10
|
10
91312-MG7-003 O-ring (24.4x3.1) |
91312-MG7-003 |
from US $7.99 |
||
|
11
|
11
91320-MB0-000 O-ring |
91320-MB0-000 |
from US $2.12 |
||
|
12
|
12
95801-0602500 Bolt, flange, 6x25 |
95801-0602500 |
from US $0.59 |
||
