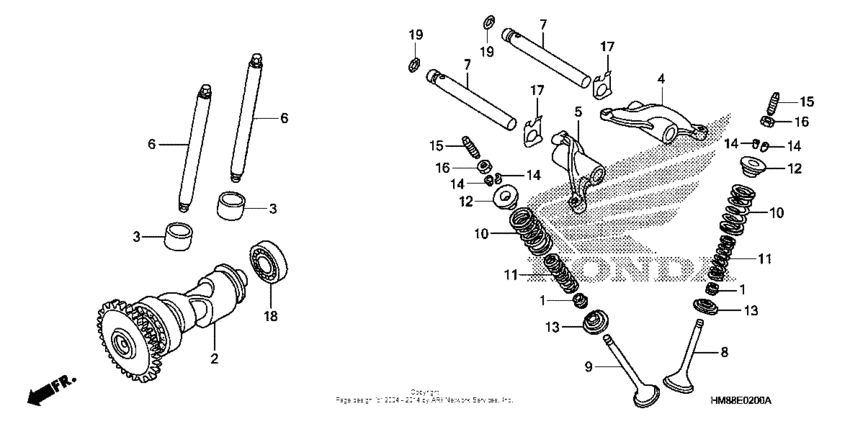

Camshaft + valve Diagram Honda TRX 250 Recon 250
- Model code
- TRX250TM A
- Engine Capacity
- 250
- Year
- 2006
- Sales region
- USA
- Frame
- 1HFTE210*64600001 - 1HFTE210*64699999
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Recon 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12209-HM8-A41 Seal, valve stem |
12209-HM8-A41 |
from US $6.03 |
||
|
2
|
2
14100-HM8-A40 Camshaft |
14100-HM8-A40 |
from US $116.42 |
||
|
3
|
3
14421-HM7-000 Follower, cam |
14421-HM7-000 |
from US $10.21 |
||
|
4
|
4
14431-HN6-000 Arm, in. vlv rocker |
14431-HN6-000 |
from US $24.77 |
||
|
5
|
5
14432-HN6-000 Arm, ex. vlv rocker |
14432-HN6-000 |
from US $24.77 |
||
|
6
|
6
14440-HN6-000 Rod, push |
14440-HN6-000 |
from US $23.94 |
||
|
7
|
7
14451-HN6-000 Shaft, rocker arm |
14451-HN6-000 |
US $15.33 |
||
|
8
|
8
14711-HM8-A40 Valve, in |
14711-HM8-A40 |
from US $21.62 |
||
|
9
|
9
14721-HM8-A40 Valve, ex |
14721-HM8-A40 |
from US $40.23 |
||
|
10
|
10
14751-HN6-000 Spring, valve |
14751-HN6-000 |
US $11.42 |
||
|
11
|
11
14761-HN6-000 Spring, valve |
14761-HN6-000 |
US $9.55 |
||
|
12
|
12
14771-107-020 Retainer, vlv spr |
14771-107-020 |
from US $5.03 |
||
|
13
|
13
14775-HM8-A40 Seat, valve spring |
14775-HM8-A40 |
from US $5.40 |
||
|
14
|
14
14781-HA0-770 Cotter, valve |
14781-HA0-770 |
from US $2.74 |
||
|
15
|
15
90012-415-000 Screw, tappet adjusting |
90012-415-000 |
from US $3.29 |
||
|
16
|
16
90206-250-000 Nut, tappet adjusting |
90206-250-000 |
from US $1.92 |
||
|
17
|
17
90402-HN6-000 Washer, spring |
90402-HN6-000 |
US $5.36 |
||
|
18
|
18
91008-HB3-003 Bearing (16002) |
91008-HB3-003 |
from US $8.88 |
||
|
19
|
19
91303-428-003 O-ring, 7.7x2.5 |
91303-428-003 |
from US $2.66 |
