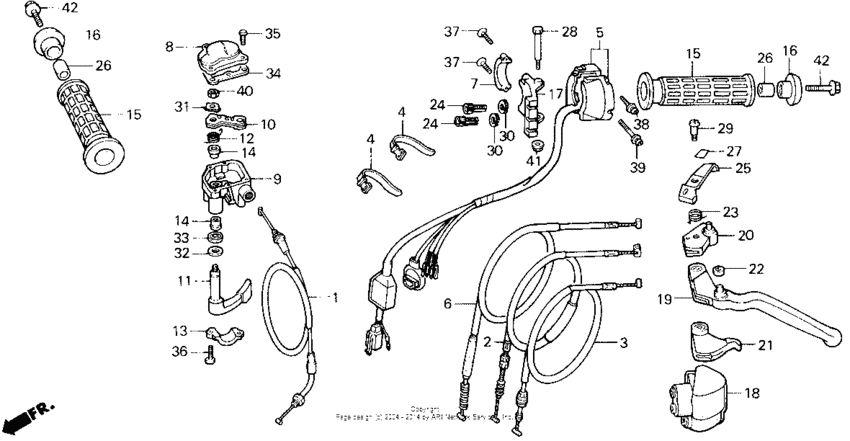

Switch Diagram Honda TRX 250 FourTrax 250 X
- Model code
- TRX250X A
- Engine Capacity
- 250
- Year
- 1988
- Sales region
- USA
- Frame
- JH3TE130*JK100002 - JH3TE130*JK104166
- Power
- 16 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-HC0-670 Cable, throttle |
17910-HC0-670 |
from US $42.39 |
||
|
2
|
2
22870-HC0-670
Cable comp.,clutc
|
22870-HC0-670 |
— | ||
|
3
|
3
22880-HC0-000
Cable,reverse ass
|
22880-HC0-000 |
— | ||
|
4
|
4
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
5
|
5
35200-HC0-010
Sw.assy,light eng
Use up to Frame SN JK104164 |
35200-HC0-010 |
— | ||
|
6
|
6
43455-HC0-003
Cable comp.,parki
|
43455-HC0-003 |
— | ||
|
7
|
7
45517-961-000
Holder
|
45517-961-000 |
— | ||
|
8
|
8
53141-HC3-000
Cover, throttle case
|
53141-HC3-000 |
— | ||
|
9
|
9
53142-HC0-770 Case, throttle lever |
53142-HC0-770 |
from US $31.28 |
||
|
10
|
10
53144-HA0-010 Arm, throttle |
53144-HA0-010 |
from US $6.81 |
||
|
11
|
11
53145-HA0-305 Lever, throttle |
53145-HA0-305 |
US $24.31 |
||
| replacement | |||||
|
11
|
11
53145-HA0-770 Lever, throttle |
53145-HA0-770 |
from US $23.66 |
||
|
12
|
12
53146-HA0-000 Spring |
53146-HA0-000 |
from US $3.27 |
||
|
13
|
13
53147-HC3-000 Holder |
53147-HC3-000 |
from US $4.44 |
||
|
14
|
14
53148-HA0-000 Bush, throttle pivot |
53148-HA0-000 |
from US $5.33 |
||
|
15
|
15
53165-958-010 Grip, handle |
53165-958-010 |
from US $16.32 |
||
|
16
|
16
53167-958-680 Guard, handlebar end |
53167-958-680 |
from US $2.95 |
||
|
17
|
17
53172-HC0-000
Brkt, l. handlebar
|
53172-HC0-000 |
— | ||
|
18
|
18
53177-HC0-000
Cover, l. handlebar
|
53177-HC0-000 |
— | ||
|
19
|
19
53178-HC0-000
Lever comp.,l.ste
|
53178-HC0-000 |
— | ||
|
20
|
20
53180-961-010
Arm, parking brake
|
53180-961-010 |
— | ||
|
21
|
21
53182-HC0-000
Arm, reverse assist
|
53182-HC0-000 |
— | ||
|
22
|
22
53187-VM6-000 Cap, reverse pin |
53187-VM6-000 |
from US $3.18 |
||
|
23
|
23
53191-961-010 Spring |
53191-961-010 |
from US $2.89 |
||
|
24
|
24
53192-268-000 Bolt, cable adj. |
53192-268-000 |
from US $3.85 |
||
|
25
|
25
53192-965-000 Lever |
53192-965-000 |
from US $13.57 |
||
|
26
|
26
84906-118-000 Collar, number bracket setting |
84906-118-000 |
from US $2.37 |
||
|
27
|
27
87574-HA5-300 Mark |
87574-HA5-300 |
from US $1.78 |
||
|
28
|
28
90113-HC0-000 Bolt |
90113-HC0-000 |
from US $7.55 |
||
|
29
|
29
90115-961-000 Screw |
90115-961-000 |
from US $2.37 |
||
|
30
|
30
90321-315-670 Nut, fixing |
90321-315-670 |
from US $5.83 |
||
|
31
|
31
90501-HA0-000 Washer, lock, 6mm |
90501-HA0-000 |
from US $2.56 |
||
|
32
|
32
90504-HA0-000 Washer (9x20) |
90504-HA0-000 |
from US $2.10 |
||
|
33
|
33
91210-HA0-004 Dust seal (9x16x5) |
91210-HA0-004 |
from US $3.80 |
||
|
34
|
34
91532-HA0-020 Gasket |
91532-HA0-020 |
from US $1.67 |
||
|
35
|
35
93500-040-160-G ScrewPAN, 4X16 |
93500-040-160-G |
from US $0.37 |
||
|
36
|
36
93500-050140G Screw, pan (5x14) |
93500-050140G |
from US $0.37 |
||
|
37
|
37
93700-060250G
Screw, oval (6x25)
|
93700-060250G |
— | ||
|
38
|
38
93892-0502507 Screw-washer (5x25) |
93892-0502507 |
from US $0.52 |
||
|
39
|
39
93892-0503207 Screw-washer (5x32) |
93892-0503207 |
US $0.52 |
||
|
40
|
40
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
41
|
41
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
42
|
42
95701-060-250-7 BoltFLANGE, 6X25 |
95701-060-250-7 |
from US $0.59 |
||
