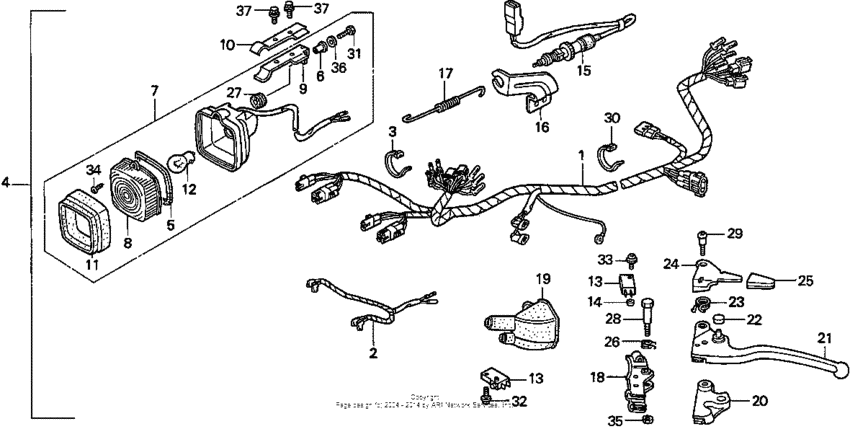

Stop light-- maine state 98 Diagram Honda TRX 300 FourTrax 300
- Model code
- TRX300 AM
- Engine Capacity
- 282
- Year
- 1998
- Sales region
- USA
- Frame
- 478TE140*WA900001 -
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32100-HM5-M00
Wire harness
|
32100-HM5-M00 |
— | ||
|
2
|
2
32105-HC4-831
Sub-harness, fr.
|
32105-HC4-831 |
— | ||
|
3
|
3
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
4
|
4
33080-HM5-M00
Light set, stop
|
33080-HM5-M00 |
— | ||
|
5
|
5
33407-166-611 Gasket |
33407-166-611 |
from US $4.14 |
||
|
6
|
6
33715-MC4-610 Collar |
33715-MC4-610 |
from US $2.66 |
||
|
7
|
7
33810-HC4-830 Light assy., stop |
33810-HC4-830 |
US $63.22 |
||
|
8
|
8
33812-HF1-830 Lens, stop light |
33812-HF1-830 |
from US $8.47 |
||
|
9
|
9
33815-HC4-830 Stay, stop light |
33815-HC4-830 |
US $17.34 |
||
|
10
|
10
33816-HC4-830
Holder, stop light
|
33816-HC4-830 |
— | ||
|
11
|
11
33850-HF1-831 Rubber |
33850-HF1-831 |
US $13.26 |
||
|
12
|
12
34905-KN8-003 Bulb (12v21cp) |
34905-KN8-003 |
from US $2.96 |
||
|
13
|
13
35340-ML4-005 Switch assy., fr. stop (tateishi) |
35340-ML4-005 |
from US $13.91 |
||
| replacement | |||||
|
13
|
13
35340-HR0-305 Switch, fr. stop |
35340-HR0-305 |
US $22.98 |
||
|
14
|
14
35345-HF1-830 Collar, stop switch |
35345-HF1-830 |
from US $3.18 |
||
|
15
|
15
35350-HC5-880 Switch, rr. stop |
35350-HC5-880 |
US $23.63 |
||
|
16
|
16
35351-HC5-880
Stay, stop switch
|
35351-HC5-880 |
— | ||
|
17
|
17
35357-KE4-730 Spring,stop switc |
35357-KE4-730 |
from US $4.88 |
||
|
17
|
17
35357-425-610 Spring, stop switch |
35357-425-610 |
US $6.87 |
||
| replacement | |||||
|
17
|
17
35357-KE4-730 Spring,stop switc |
35357-KE4-730 |
from US $4.88 |
||
|
18
|
18
53172-HM7-000 Brkt, handle lever |
53172-HM7-000 |
from US $33.46 |
||
|
19
|
19
53177-HF1-830
Cover, l. handlebar
|
53177-HF1-830 |
— | ||
|
20
|
20
53179-HA6-000 Arm, reverse assist |
53179-HA6-000 |
from US $16.18 |
||
|
21
|
21
53180-HA8-770 Lever, rr. brake |
53180-HA8-770 |
from US $33.32 |
||
|
22
|
22
53187-VM6-000 Cap, reverse pin |
53187-VM6-000 |
from US $3.18 |
||
|
23
|
23
53191-961-010 Spring |
53191-961-010 |
from US $2.89 |
||
|
24
|
24
53192-HA8-771 Lever, parking lock |
53192-HA8-771 |
from US $8.29 |
||
|
25
|
25
53193-HA0-770 Cap, parking lever |
53193-HA0-770 |
from US $2.95 |
||
|
26
|
26
53193-HF1-830 Spring, lever return |
53193-HF1-830 |
from US $3.85 |
||
|
27
|
27
80101-283-000 Rubber, rr. fender cushion |
80101-283-000 |
from US $4.29 |
||
|
28
|
28
90114-HM8-000 Bolt |
90114-HM8-000 |
US $10.27 |
||
|
29
|
29
90115-HA6-000 Screw |
90115-HA6-000 |
from US $1.87 |
||
|
30
|
30
90650-KV6-003 BandWIRE, 95MM |
90650-KV6-003 |
from US $3.03 |
||
|
31
|
31
92101-05020-0A Bolt, hex., 5x20 |
92101-05020-0A |
from US $0.38 |
||
|
32
|
32
93893-040-140-7 Screw-washer4X14 |
93893-040-140-7 |
from US $0.52 |
||
|
33
|
33
93893-0402007 Screw-washer, 4x20 |
93893-0402007 |
from US $0.55 |
||
|
34
|
34
93901-14480 ScrewTAPPING, 4X16 |
93901-14480 |
US $0.37 |
||
|
35
|
35
94001-060-700-S NutHEX., 6MM |
94001-060-700-S |
from US $0.44 |
||
|
36
|
36
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
37
|
37
95701-060-120-7 BoltFLANGE, 6X12 |
95701-060-120-7 |
from US $0.52 |
||
