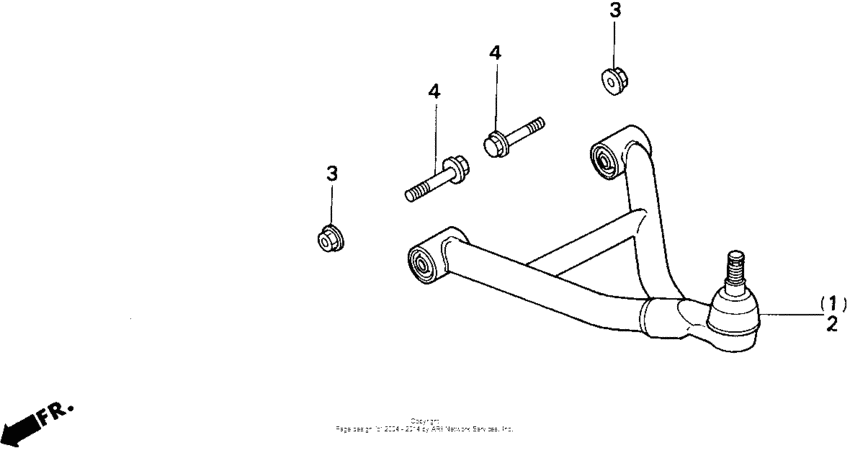

Trx300 front arm (trx300) ('92) 92 Diagram Honda TRX 300 FourTrax 300
- Model code
- TRX300 AN
- Engine Capacity
- 282
- Year
- 1992
- Sales region
- USA
- Frame
- 478TE143*NA400001 - 478TE143*NA400080
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 300
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51350-HC4-010
Arm, r. fr. (lower)
|
51350-HC4-010 |
— | ||
|
2
|
2
51360-HC4-010
Arm, l. fr. (lower)
|
51360-HC4-010 |
— | ||
|
3
|
3
90305-HC0-770 Nut, self-lock, 10mm |
90305-HC0-770 |
from US $2.66 |
||
|
4
|
4
90151-HC5-000 Bolt, flange (10x62) |
90151-HC5-000 |
from US $5.33 |
||
|
4
|
4
95801-1006500 Bolt, flange, 10x65 |
95801-1006500 |
from US $1.18 |
||
| replacement | |||||
|
4
|
4
90151-HC5-000 Bolt, flange (10x62) |
90151-HC5-000 |
from US $5.33 |
||
