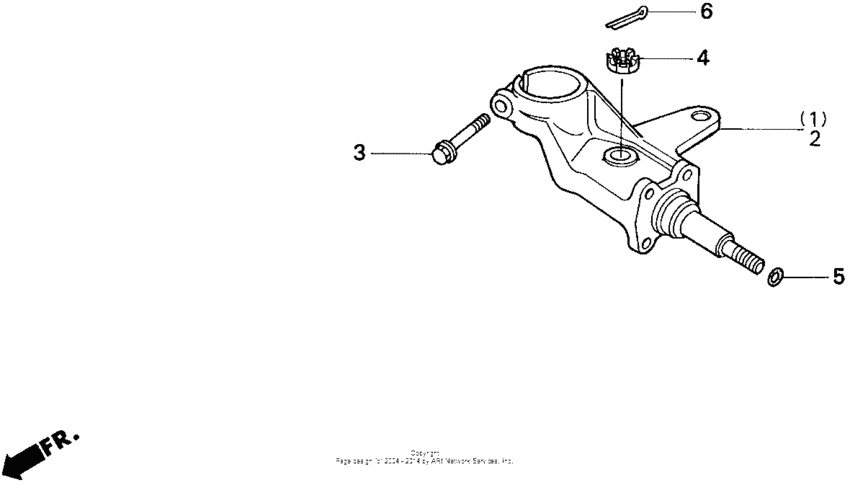

Trx300 knuckle (trx300) ('92) 92 Diagram Honda TRX 300 FourTrax 300
- Model code
- TRX300 AN
- Engine Capacity
- 282
- Year
- 1992
- Sales region
- USA
- Frame
- 478TE143*NA400001 - 478TE143*NA400080
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 300
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51211-HC4-000
Knuckle, r.
|
51211-HC4-000 |
— | ||
|
2
|
2
51221-HC4-000
Knuckle, l.
|
51221-HC4-000 |
— | ||
|
3
|
3
90153-GC4-731 Bolt, flange (10x40) |
90153-GC4-731 |
from US $6.51 |
||
|
3
|
3
90153-HC4-000 Bolt, flange (10x39) |
90153-HC4-000 |
from US $6.17 |
||
|
4
|
4
90310-HB9-000 Nut, castle (12mm) |
90310-HB9-000 |
from US $3.63 |
||
|
5
|
5
91352-KG8-831 O-ring (11.3x1.3) |
91352-KG8-831 |
US $2.39 |
||
|
6
|
6
9420130280 Pin, split, 3.0x28 |
9420130280 |
from US $0.44 |
||
|
6
|
6
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
6
|
6
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
6
|
6
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
