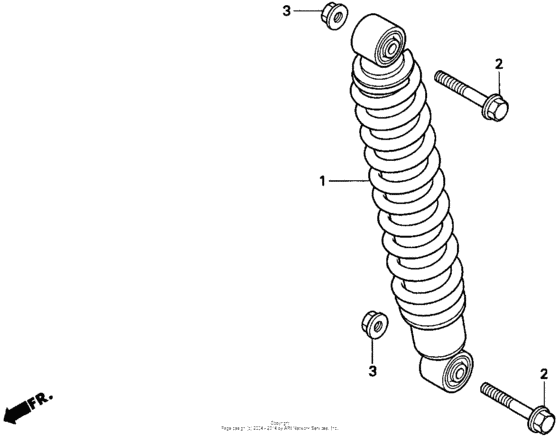

Rear shock absorber Diagram Honda TRX 300 FourTrax 300
- Model code
- TRX300 AN
- Engine Capacity
- 282
- Year
- 1996
- Sales region
- USA
- Frame
- 478TE143*TA800001 -
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 300
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-HC4-840 Shock absorber, rr. |
52400-HC4-840 |
US $167.11 |
||
|
2
|
2
90154-HA8-000 Bolt, flange (10x52) |
90154-HA8-000 |
from US $5.33 |
||
|
3
|
3
90305-HC0-770 Nut, self-lock, 10mm |
90305-HC0-770 |
from US $2.93 |
