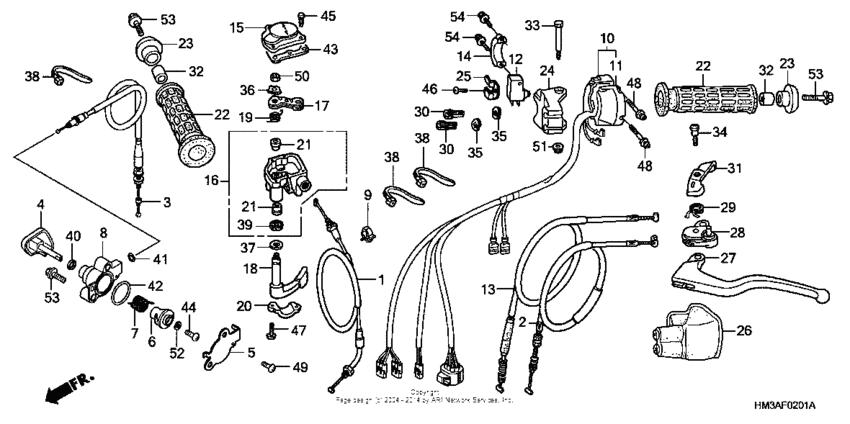

Handle lever + switch + cable (trx300ex'07-) Diagram Honda TRX 300 Sportrax 300 EX
- Model code
- TRX300EX A
- Engine Capacity
- 282
- Year
- 2008
- Sales region
- USA
- Frame
- JH2TE190*8K300001 - JH2TE190*8K399999
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Sportrax 300 EX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-HC0-670 Cable, throttle |
17910-HC0-670 |
from US $42.39 |
||
|
2
|
2
22870-HM3-A60 Cable, clutch |
22870-HM3-A60 |
from US $27.88 |
||
|
3
|
3
22880-HM3-A60 Cable |
22880-HM3-A60 |
from US $19.64 |
||
|
4
|
4
22881-HM3-A60 Knob |
22881-HM3-A60 |
from US $11.72 |
||
|
5
|
5
22883-HN6-A30 Cover (lower) |
22883-HN6-A30 |
from US $3.25 |
||
|
6
|
6
22885-HN1-A40 Drum |
22885-HN1-A40 |
from US $2.63 |
||
|
7
|
7
22886-HN1-A40 Spring |
22886-HN1-A40 |
from US $2.96 |
||
|
8
|
8
22887-HN6-A30 Case |
22887-HN6-A30 |
from US $28.86 |
||
|
9
|
9
32175-647-920 ClipWIRE HARNESS |
32175-647-920 |
US $2.50 |
||
| replacement | |||||
|
9
|
9
30701-883-000 Clip, high tension cord (8mm) |
30701-883-000 |
US $4.47 |
||
|
10
|
10
35150-HM3-A71 Switch assy., lighti |
35150-HM3-A71 |
US $117.73 |
||
| replacement | |||||
|
10
|
10
35150-HM3-A72 Switch Assy. |
35150-HM3-A72 |
US $117.73 |
||
|
11
|
11
35201-HB7-671 Cover, switch |
35201-HB7-671 |
from US $9.77 |
||
|
12
|
12
35340-ML4-005 Switch assy., fr. stop (tateishi) |
35340-ML4-005 |
from US $13.91 |
||
| replacement | |||||
|
12
|
12
35340-HR0-305 Switch, fr. stop |
35340-HR0-305 |
US $22.98 |
||
|
13
|
13
43455-HM3-A60 Cable, parking brake |
43455-HM3-A60 |
from US $24.75 |
||
|
14
|
14
45517-GBZ-700 Holder |
45517-GBZ-700 |
from US $12.85 |
||
|
15
|
15
53141-HP1-000 Cover, throttle case |
53141-HP1-000 |
from US $26.89 |
||
|
16
|
16
53143-HM7-305 Case, throttle lever |
53143-HM7-305 |
from US $39.58 |
||
|
17
|
17
53144-HA0-010 Arm, throttle |
53144-HA0-010 |
from US $6.81 |
||
|
18
|
18
53145-HA0-305 Lever, throttle |
53145-HA0-305 |
US $24.31 |
||
| replacement | |||||
|
18
|
18
53145-HA0-770 Lever, throttle |
53145-HA0-770 |
from US $23.66 |
||
|
19
|
19
53146-HA0-000 Spring |
53146-HA0-000 |
from US $3.27 |
||
|
20
|
20
53147-HC3-000 Holder |
53147-HC3-000 |
from US $4.44 |
||
|
21
|
21
53148-HA0-000 Bush, throttle pivot |
53148-HA0-000 |
from US $5.33 |
||
|
22
|
22
53165-958-010 Grip, handle |
53165-958-010 |
from US $16.32 |
||
|
23
|
23
53167-958-680 Guard, handlebar end |
53167-958-680 |
from US $2.95 |
||
|
24
|
24
53172-HP1-600 Bracket, l |
53172-HP1-600 |
from US $39.16 |
||
|
25
|
25
53173-HM3-A00 Plate, clutch switch |
53173-HM3-A00 |
from US $5.25 |
||
|
26
|
26
53177-HM3-000 Cover, l. handlebar |
53177-HM3-000 |
from US $12.14 |
||
|
27
|
27
53178-HP1-000 Lever, l. handlebar |
53178-HP1-000 |
from US $35.76 |
||
| replacement | |||||
|
27
|
27
53178-HP1-305 Lever, l. handlebar |
53178-HP1-305 |
from US $34.37 |
||
|
28
|
28
53180-HM3-000 Arm assy., parking |
53180-HM3-000 |
from US $32.38 |
||
|
29
|
29
53191-961-010 Spring |
53191-961-010 |
from US $2.89 |
||
|
30
|
30
53192-268-000 Bolt, cable adj. |
53192-268-000 |
from US $3.85 |
||
|
31
|
31
53192-965-000 Lever |
53192-965-000 |
from US $13.57 |
||
|
32
|
32
84906-118-000 Collar, number bracket setting |
84906-118-000 |
from US $2.37 |
||
|
33
|
33
90115-HB5-671 Bolt |
90115-HB5-671 |
from US $6.48 |
||
|
34
|
34
90115-961-000 Screw |
90115-961-000 |
from US $2.37 |
||
|
35
|
35
90321-315-670 Nut, fixing |
90321-315-670 |
from US $5.83 |
||
|
36
|
36
90501-HA0-000 Washer, lock, 6mm |
90501-HA0-000 |
from US $2.56 |
||
|
37
|
37
90504-HA0-000 Washer (9x20) |
90504-HA0-000 |
from US $2.10 |
||
|
38
|
38
90652-KT1-771 Band, wire (black) |
90652-KT1-771 |
from US $2.29 |
||
|
39
|
39
91210-HA0-004 Dust seal (9x16x5) |
91210-HA0-004 |
from US $3.80 |
||
|
40
|
40
91231-891-003 Oil seal, 6x11x4 (arai) |
91231-891-003 |
from US $1.70 |
||
|
41
|
41
91311-PA9-004 O-ring7.7X1.9 (NOK) |
91311-PA9-004 |
from US $1.78 |
||
|
42
|
42
91326-HW1-671 O-ring (25.8x2.4) |
91326-HW1-671 |
from US $2.70 |
||
|
43
|
43
91532-HA0-020 Gasket |
91532-HA0-020 |
from US $1.67 |
||
|
44
|
44
93500-030100H Screw, pan, 3x10 |
93500-030100H |
from US $0.37 |
||
|
45
|
45
93500-040-160-G ScrewPAN, 4X16 |
93500-040-160-G |
from US $0.37 |
||
|
46
|
46
93500-050-100-A ScrewPAN, 5X10 |
93500-050-100-A |
from US $0.37 |
||
|
47
|
47
93500-050140G Screw, pan (5x14) |
93500-050140G |
from US $0.37 |
||
|
48
|
48
93892-0502507 Screw-washer (5x25) |
93892-0502507 |
from US $0.52 |
||
|
49
|
49
93901-22220 ScrewTAPPING, 3X10 |
93901-22220 |
from US $0.37 |
||
|
50
|
50
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
51
|
51
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
52
|
52
94101-03800 WasherPLAIN, 3MM |
94101-03800 |
from US $0.37 |
||
|
53
|
53
95701-060-250-7 BoltFLANGE, 6X25 |
95701-060-250-7 |
from US $0.59 |
||
|
54
|
54
96001-0602200 Bolt, flange, 6x22 |
96001-0602200 |
from US $0.74 |
||
