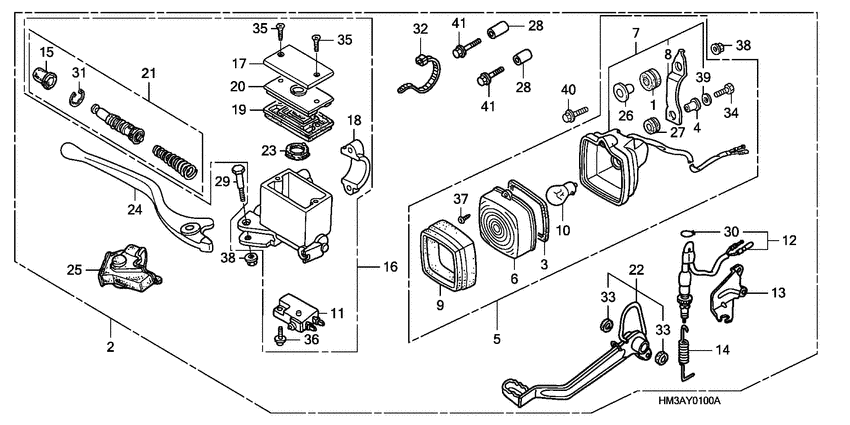

Stop light set Diagram Honda TRX 300 Sportrax 300 EX
- Model code
- TRX300EX4
- Engine Capacity
- 282
- Year
- 2004
- Sales region
- Canada
- Frame
- JH3TE192*4K900001 - JH3TE192*4K999999
- Engine
- TE19E2200001 - TE19E2299999
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Sportrax 300 EX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17245-107-010 Rubber |
17245-107-010 |
from US $2.23 |
||
|
2
|
2
33080-HM3-C90 Light set, stop |
33080-HM3-C90 |
US $408.33 |
||
|
3
|
3
33407-166-611 Gasket |
33407-166-611 |
from US $4.14 |
||
|
4
|
4
33715-MC4-610 Collar |
33715-MC4-610 |
from US $2.66 |
||
|
5
|
5
33810-HC0-830 Light assy., stop |
33810-HC0-830 |
US $61.25 |
||
|
6
|
6
33812-HF1-830 Lens, stop light |
33812-HF1-830 |
from US $8.47 |
||
|
7
|
7
33813-HC0-830 Base, stop light |
33813-HC0-830 |
from US $42.39 |
||
|
8
|
8
33815-HC0-830 Stay, stop light |
33815-HC0-830 |
US $17.66 |
||
|
9
|
9
33850-HF1-831 Rubber |
33850-HF1-831 |
US $13.26 |
||
|
10
|
10
34905-KN8-003 Bulb (12v21cp) |
34905-KN8-003 |
from US $2.96 |
||
|
11
|
11
35340-ML4-005 Switch assy., fr. stop (tateishi) |
35340-ML4-005 |
from US $13.91 |
||
| replacement | |||||
|
11
|
11
35340-HR0-305 Switch, fr. stop |
35340-HR0-305 |
US $22.98 |
||
|
12
|
12
35350-HC0-830
Switch, rr. stop
|
35350-HC0-830 |
— | ||
|
13
|
13
35351-HC0-830 Stay, stop switch |
35351-HC0-830 |
US $17.66 |
||
|
14
|
14
35357-KR8-000
Spring, stop switch
|
35357-KR8-000 |
— | ||
| replacement | |||||
|
14
|
14
35357-MN1-650
Spring,stop switc
|
35357-MN1-650 |
— | ||
|
15
|
15
45504-410-003 Boot |
45504-410-003 |
from US $4.90 |
||
|
16
|
16
45510-HM3-306 M/cyl sub-assy, fr. |
45510-HM3-306 |
from US $178.83 |
||
|
17
|
17
45513-KK1-771
Cap, master cylinder
|
45513-KK1-771 |
— | ||
| replacement | |||||
|
17
|
17
45513-HR0-305 Cap, master cylinder |
45513-HR0-305 |
US $6.89 |
||
|
18
|
18
45517-166-006 Holder |
45517-166-006 |
from US $11.81 |
||
|
19
|
19
45520-MG7-006 Diaphragm |
45520-MG7-006 |
from US $7.70 |
||
|
20
|
20
45521-HA2-006 Plate, diaphragm |
45521-HA2-006 |
from US $7.55 |
||
|
21
|
21
45530-KJ1-702 Master cylinder set |
45530-KJ1-702 |
from US $32.23 |
||
|
22
|
22
46510-HM3-690 Pedal assy., brake |
46510-HM3-690 |
US $123.20 |
||
|
23
|
23
46666-HB9-006 Separator |
46666-HB9-006 |
from US $6.02 |
||
|
24
|
24
53175-HM3-000 Lever, r. handlebar |
53175-HM3-000 |
from US $23.66 |
||
|
25
|
25
53176-HC0-671 Cover, r. handlebar |
53176-HC0-671 |
from US $9.67 |
||
|
26
|
26
61104-357-000 Collar, fr. fender |
61104-357-000 |
from US $5.83 |
||
| replacements | |||||
|
26
|
26
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
|
26
|
26
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.07 |
||
|
27
|
27
80101-283-000 Rubber, rr. fender cushion |
80101-283-000 |
from US $4.29 |
||
|
28
|
28
80137-HF1-880 Collar (14x15) |
80137-HF1-880 |
from US $4.31 |
||
|
29
|
29
90114-166-006 Bolt |
90114-166-006 |
from US $2.66 |
||
|
30
|
30
90601-KAF-003 Clip, switch cover |
90601-KAF-003 |
from US $1.92 |
||
|
31
|
31
90651-MA5-671 Circlip |
90651-MA5-671 |
from US $2.59 |
||
|
32
|
32
90652-KT1-771 Band, wire (black) |
90652-KT1-771 |
from US $2.29 |
||
|
33
|
33
91206-968-003 Dust seal, 17x23x3 (nok) |
91206-968-003 |
from US $4.07 |
||
|
34
|
34
92101-05020-0A Bolt, hex., 5x20 |
92101-05020-0A |
from US $0.38 |
||
|
35
|
35
93600-040-121-G
Screw
|
93600-040-121-G |
— | ||
| replacement | |||||
|
35
|
35
93600-040-120-G Screw, flat, 4x12 |
93600-040-120-G |
from US $0.37 |
||
|
36
|
36
93893-040-141-7
Screw-washer (4x14)
|
93893-040-141-7 |
— | ||
| replacement | |||||
|
36
|
36
93893-040-140-7 Screw-washer4X14 |
93893-040-140-7 |
from US $0.52 |
||
|
37
|
37
93901-14480 ScrewTAPPING, 4X16 |
93901-14480 |
US $0.37 |
||
|
38
|
38
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
39
|
39
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
40
|
40
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
41
|
41
95701-080-350-0 BoltFLANGE, 8X35 |
95701-080-350-0 |
from US $0.74 |
||
