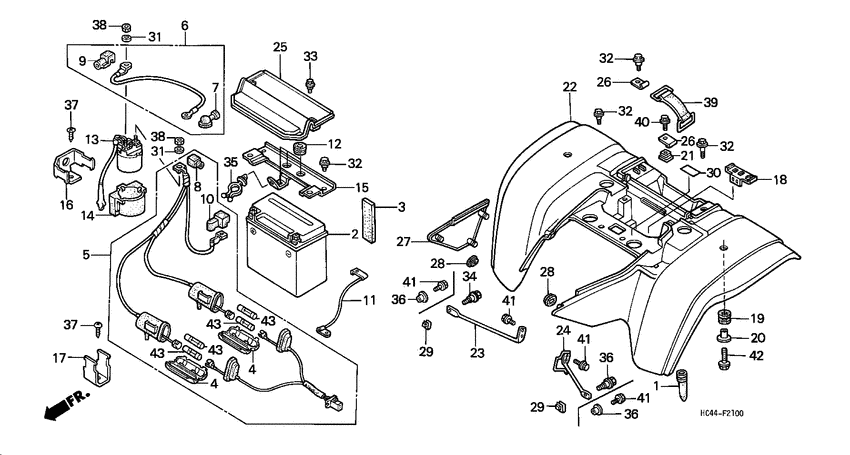

Rear fender ('88) Diagram Honda TRX 300 FourTrax 300
- Model code
- TRX300J
- Engine Capacity
- 282
- Year
- 1988
- Sales region
- USA
- Frame
- JH3TE140*JK000018 - JH3TE140*JK035147
- Engine
- TE14E8000025 - TE14E8035160
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax 300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17358-VM4-000 Tube, drain |
17358-VM4-000 |
US $12.50 |
||
|
2
|
2
31500-HA7-671 Battery (yth14-12b) |
31500-HA7-671 |
US $102.31 |
||
| replacement | |||||
|
2
|
2
31500-HC4-726AH
Battery (ytx14-bs)
|
31500-HC4-726AH |
— | ||
|
3
|
3
31508-HC4-000 Rubber, battery |
31508-HC4-000 |
US $6.65 |
||
|
4
|
4
32120-465-770 Case, fuse (15a) |
32120-465-770 |
from US $3.92 |
||
|
5
|
5
32401-HC4-000
Cable, battery relay
|
32401-HC4-000 |
— | ||
|
6
|
6
32402-HC4-000 Cable, starter motor- JK000930 |
32402-HC4-000 |
US $47.23 |
||
| replacements | |||||
|
6
|
6
32402-HC4-020
Cable, starter motor
- JK000930 |
32402-HC4-020 |
— | ||
|
6
|
6
32402-HC4-010 Cable, starter motor- JK000930 |
32402-HC4-010 |
US $47.23 |
||
| replacement | |||||
|
6
|
6
32402-HC4-020
Cable, starter motor
- JK000930 |
32402-HC4-020 |
— | ||
|
6
|
6
32402-HC4-010 Cable, starter motor |
32402-HC4-010 |
US $47.23 |
||
| replacement | |||||
|
6
|
6
32402-HC4-020
Cable, starter motor
|
32402-HC4-020 |
— | ||
|
7
|
7
32411-473-000 Cover, terminal |
32411-473-000 |
from US $5.48 |
||
|
8
|
8
32412-HB6-000 Cover |
32412-HB6-000 |
from US $4.27 |
||
|
9
|
9
32413-HC4-300
Cover b
- JK000930 |
32413-HC4-300 |
— | ||
|
9
|
9
32404-MJ0-000
Cover a
|
32404-MJ0-000 |
— | ||
|
10
|
10
32414-MM9-000 Cover a, battery terminal |
32414-MM9-000 |
from US $3.92 |
||
|
11
|
11
32601-HC4-000
Cable
|
32601-HC4-000 |
— | ||
| replacement | |||||
|
11
|
11
32601-HC4-010
Cable
|
32601-HC4-010 |
— | ||
|
12
|
12
33715-965-000 Rubber |
33715-965-000 |
from US $3.18 |
||
|
13
|
13
35850-HC4-000 Switch assy |
35850-HC4-000 |
US $134.81 |
||
|
14
|
14
35856-425-000 Rubber |
35856-425-000 |
from US $5.92 |
||
|
15
|
15
50311-HC4-000
Plate
|
50311-HC4-000 |
— | ||
|
16
|
16
50326-HC4-000 Stay |
50326-HC4-000 |
from US $4.59 |
||
|
17
|
17
50327-HC4-000
Stay, fuse
|
50327-HC4-000 |
— | ||
|
18
|
18
50328-HC4-000
Stay, connector
|
50328-HC4-000 |
— | ||
|
19
|
19
61103-357-000 Rubber, fr. fender mounting |
61103-357-000 |
from US $0.14 |
||
|
20
|
20
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
20
|
20
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.07 |
||
|
21
|
21
61304-HB3-003 Nut, special, 6mm |
61304-HB3-003 |
from US $3.07 |
||
|
22
|
22
80100-HC4-000ZA
Fender, rr. *r109*
- JK000034 |
80100-HC4-000ZA |
— | ||
| replacement | |||||
|
22
|
22
80100-HC4-606ZA
Fender, rr. *r109*
- JK000034 |
80100-HC4-606ZA |
— | ||
|
22
|
22
80100-HC4-000ZB
Fender, rr. *nh180r*
- JK000034 |
80100-HC4-000ZB |
— | ||
| replacement | |||||
|
22
|
22
80100-HC4-505ZB
Fender, rr. *nh180r*
- JK000034 |
80100-HC4-505ZB |
— | ||
|
22
|
22
80100-HC4-010ZA
Fender, rr. *r109*
JK000035 - |
80100-HC4-010ZA |
— | ||
| replacement | |||||
|
22
|
22
80100-HC4-505ZA
Fender, rr. *r109*
JK000035 - |
80100-HC4-505ZA |
— | ||
|
22
|
22
80100-HC4-010ZB Fender, rr. *nh180r*JK000035 - |
80100-HC4-010ZB |
US $233.87 |
||
| replacement | |||||
|
22
|
22
80100-HC4-505ZB
Fender, rr. *nh180r*
JK000035 - |
80100-HC4-505ZB |
— | ||
|
23
|
23
80217-HC4-000
Stay, r. rr. fender
- JK017529 |
80217-HC4-000 |
— | ||
| replacement | |||||
|
23
|
23
80217-HC4-670
Stay, r. rr. fender
- JK017529 |
80217-HC4-670 |
— | ||
|
23
|
23
80217-HC4-010
Stay, r. rr. fender
JK017530 - |
80217-HC4-010 |
— | ||
| replacement | |||||
|
23
|
23
80217-HC4-670
Stay, r. rr. fender
JK017530 - |
80217-HC4-670 |
— | ||
|
24
|
24
80218-HC4-000 Stay, l. rr. fender- JK017529 |
80218-HC4-000 |
US $10.64 |
||
| replacement | |||||
|
24
|
24
80218-HC4-900 Stay, l. rr. fender- JK017529 |
80218-HC4-900 |
US $10.90 |
||
|
24
|
24
80218-HC4-010 Stay, l. rr. fenderJK017530 - |
80218-HC4-010 |
US $10.90 |
||
| replacement | |||||
|
24
|
24
80218-HC4-900 Stay, l. rr. fenderJK017530 - |
80218-HC4-900 |
US $10.90 |
||
|
25
|
25
80311-HC4-000ZA Cover *r109* |
80311-HC4-000ZA |
US $32.42 |
||
| replacement | |||||
|
25
|
25
80311-HM4-730ZB Cover *r109* |
80311-HM4-730ZB |
US $39.17 |
||
|
25
|
25
80311-HC4-000ZB
Cover *nh180r*
|
80311-HC4-000ZB |
— | ||
| replacement | |||||
|
25
|
25
80311-HC4-010ZB
Cover *nh180r*
|
80311-HC4-010ZB |
— | ||
|
26
|
26
80312-HC4-000
Hook, tool setting
|
80312-HC4-000 |
— | ||
|
27
|
27
83500-HC4-000ZA Cvr, r. side *r109* |
83500-HC4-000ZA |
US $40.26 |
||
| replacement | |||||
|
27
|
27
83500-HM4-730ZB Cvr, r. side *r109* |
83500-HM4-730ZB |
US $48.62 |
||
|
27
|
27
83500-HC4-000ZB
Cover, r. *nh180r*
|
83500-HC4-000ZB |
— | ||
|
28
|
28
83551-300-000 Grommet, air cleaner case |
83551-300-000 |
from US $1.28 |
||
|
29
|
29
84601-HC4-000 Nut, fender setting |
84601-HC4-000 |
from US $3.63 |
||
|
30
|
30
87506-HC4-300
Mark
|
87506-HC4-300 |
— | ||
|
31
|
31
90052-ZA0-800 Washer, spring, 6mm |
90052-ZA0-800 |
from US $0.74 |
||
|
32
|
32
90111-HC4-000 Bolt, flange, 6x14 |
90111-HC4-000 |
from US $2.59 |
||
|
33
|
33
90111-KM1-000 Bolt, flange (6mm) |
90111-KM1-000 |
from US $2.89 |
||
|
34
|
34
90113-MJ4-670 Bolt, flange (6x16)JK004275 - |
90113-MJ4-670 |
from US $3.70 |
||
|
35
|
35
90119-HA7-670 Clamp, harness |
90119-HA7-670 |
from US $2.59 |
||
|
36
|
36
90522-028-000 Washer, chain case setting- JK004274 |
90522-028-000 |
from US $1.92 |
||
|
37
|
37
93901-25120 ScrewTAPPING, 5X10 |
93901-25120 |
from US $0.41 |
||
|
38
|
38
94002-063900S Nut, hex., 6mm |
94002-063900S |
from US $0.52 |
||
|
39
|
39
9501212001 Band b1, battery |
9501212001 |
from US $3.48 |
||
|
40
|
40
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
41
|
41
95701-060-160-7 BoltFLANGE, 6X16 - JK000880 |
95701-060-160-7 |
from US $0.58 |
||
|
41
|
41
95701-060-160-8 BoltFLANGE, 6X16 JK000881 - JK004274 |
95701-060-160-8 |
from US $0.38 |
||
|
41
|
41
95701-0601407 Bolt, flange, 6x14JK004275 - |
95701-0601407 |
from US $0.52 |
||
|
42
|
42
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
43
|
43
98200-21500 Fuse b15A |
98200-21500 |
from US $0.62 |
||
