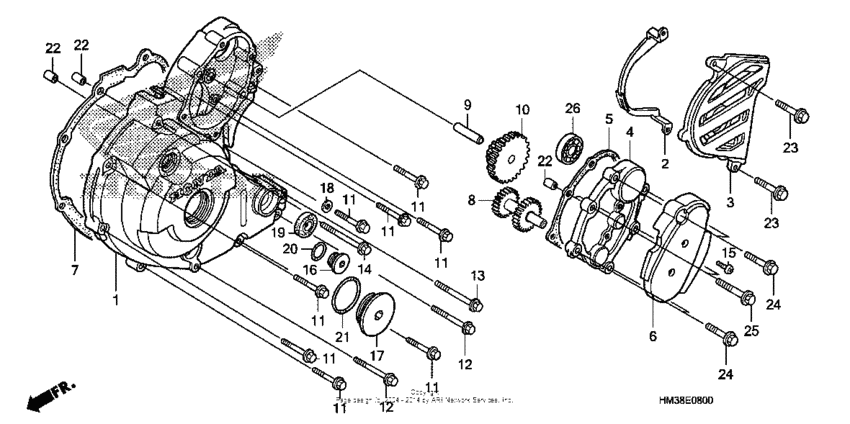

Left Crankcase Cover Diagram Honda TRX 300 Sportrax 300 X
- Model code
- TRX300X A
- Engine Capacity
- 282
- Year
- 2009
- Sales region
- USA
- Frame
- JH2TE190*9K400001 -
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Sportrax 300 X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-HM3-A60 Cover, l. crankcase |
11341-HM3-A60 |
from US $154.26 |
||
|
2
|
2
11350-HM3-A00 Guide, drive chain |
11350-HM3-A00 |
from US $17.88 |
||
|
3
|
3
11351-HM3-670 Cover, l. rr. |
11351-HM3-670 |
from US $31.01 |
||
|
4
|
4
11355-HM3-670 Cover, starter gear |
11355-HM3-670 |
from US $60.97 |
||
|
5
|
5
11356-HM3-670 Gasket |
11356-HM3-670 |
from US $5.56 |
||
|
6
|
6
11357-HM3-A60 Protector |
11357-HM3-A60 |
from US $20.99 |
||
|
7
|
7
11395-HM3-670 Gasket, l |
11395-HM3-670 |
from US $18.18 |
||
|
8
|
8
28130-HM3-A60 Shaft (23t/21t) |
28130-HM3-A60 |
US $70.87 |
||
|
9
|
9
28132-KK3-830 Shaft |
28132-KK3-830 |
US $12.68 |
||
|
10
|
10
28140-HM3-670 Gear (68t/26t) |
28140-HM3-670 |
from US $109.82 |
||
|
11
|
11
90004-GHB-680 Bolt, flange (6x28) |
90004-GHB-680 |
from US $1.26 |
||
|
12
|
12
90004-GHB-710 Bolt, flange (6x40) |
90004-GHB-710 |
from US $2.44 |
||
|
13
|
13
90004-GHB-720 Bolt, flange (6x45) |
90004-GHB-720 |
from US $2.52 |
||
|
14
|
14
90004-GHB-740 Bolt, flange (6x55) |
90004-GHB-740 |
from US $2.72 |
||
|
15
|
15
90017-HA0-000 Screw, tap (4x12) |
90017-HA0-000 |
from US $2.16 |
||
|
16
|
16
90084-KY2-000 Cap (14mm) |
90084-KY2-000 |
from US $7.70 |
||
|
17
|
17
90087-HB5-000 Cap (30mm) |
90087-HB5-000 |
from US $7.22 |
||
|
18
|
18
90425-300-000 Washer (11mm) |
90425-300-000 |
from US $3.58 |
||
|
19
|
19
91203-HC4-005 Oil seal (13x28x7) |
91203-HC4-005 |
from US $5.62 |
||
|
20
|
20
91303-377-000 O-ring, 13.8x2.5 |
91303-377-000 |
from US $5.49 |
||
|
21
|
21
91305-KF0-003 O-ring, 27x2 (arai) |
91305-KF0-003 |
from US $2.89 |
||
|
22
|
22
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
23
|
23
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
||
|
24
|
24
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
25
|
25
96001-0603200 Bolt, flange, 6x32 |
96001-0603200 |
from US $0.74 |
||
|
26
|
26
96100-6000000 Bearing, radial ball, 6000 |
96100-6000000 |
from US $4.74 |
