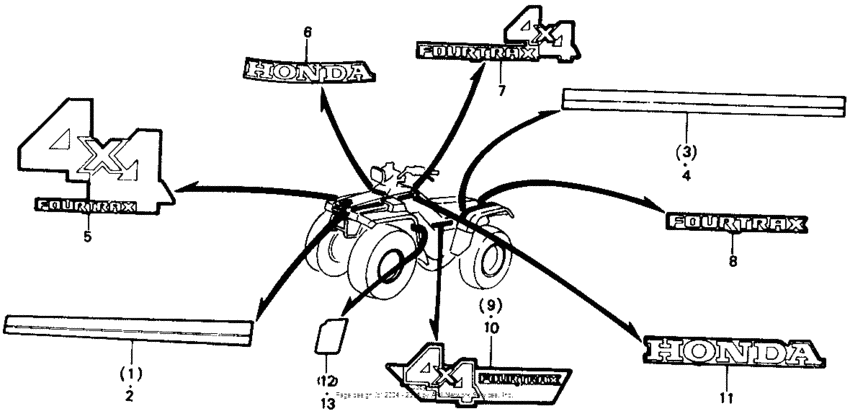

350 stripes + marks 86 Diagram Honda TRX 350 FourTrax 350
- Model code
- TRX350
- Engine Capacity
- 329
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TE070*GM000038 - JH3TE070*GM050913
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- FourTrax 350
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87111-HA7-670
Stripe, r. fr.
|
87111-HA7-670 |
— | ||
|
2
|
2
87112-HA7-670
Stripe, l. fr.
|
87112-HA7-670 |
— | ||
|
3
|
3
87113-HA7-670
Stripe, r. rr.
|
87113-HA7-670 |
— | ||
|
4
|
4
87114-HA7-670
Stripe rr fend l.
|
87114-HA7-670 |
— | ||
|
5
|
5
87115-HA7-670
Mark fr.fend up
|
87115-HA7-670 |
— | ||
|
6
|
6
87118-HA7-670
Mark,upper cover
|
87118-HA7-670 |
— | ||
|
7
|
7
87119-HA7-670
Mark air/c cover
|
87119-HA7-670 |
— | ||
|
8
|
8
87120-HA7-670
Mark tool box lid
|
87120-HA7-670 |
— | ||
|
9
|
9
87121-HA7-670
Stripe a,r.side c
|
87121-HA7-670 |
— | ||
|
10
|
10
87123-HA7-670
Stripe l,side cov
|
87123-HA7-670 |
— | ||
|
11
|
11
87124-HA7-670 Mark,fr.fender si |
87124-HA7-670 |
US $11.99 |
||
|
12
|
12
87126-HA7-670 Mark,r.instrument |
87126-HA7-670 |
US $13.11 |
||
|
13
|
13
87127-HA7-670
Mark,l.instrument
|
87127-HA7-670 |
— |
