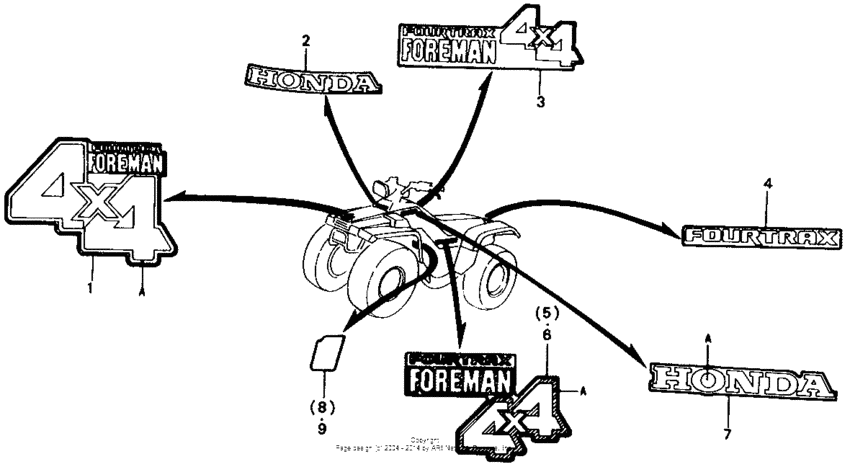

350d stripes + marks 87 Diagram Honda TRX 350 FourTrax Foreman 350
- Model code
- TRX350D
- Engine Capacity
- 329
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TE071*HK000001 - JH3TE071*HK010305
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- FourTrax Foreman 350
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87115-HA7-750ZA
Mark, fr. (typea)
|
87115-HA7-750ZA |
— | ||
|
1
|
1
87115-HA7-750ZB
Mark, fr. (typeb)
|
87115-HA7-750ZB |
— | ||
|
2
|
2
87118-HA7-750
Mark, cover (upper)
|
87118-HA7-750 |
— | ||
|
3
|
3
87119-HA7-770
Mark
|
87119-HA7-770 |
— | ||
|
4
|
4
87120-HA7-750
Mark,tool box lid
|
87120-HA7-750 |
— | ||
|
5
|
5
87121-HA7-750ZA
Stripe, r. (typea)
|
87121-HA7-750ZA |
— | ||
|
5
|
5
87121-HA7-750ZB
Stripe, r. (typeb)
|
87121-HA7-750ZB |
— | ||
|
6
|
6
87123-HA7-750ZA
Stripe, l. (typea)
|
87123-HA7-750ZA |
— | ||
|
6
|
6
87123-HA7-750ZB
Stripe, l. (typeb)
|
87123-HA7-750ZB |
— | ||
|
7
|
7
87124-HA7-750ZA
Mark,fr.f*type a*
|
87124-HA7-750ZA |
— | ||
|
7
|
7
87124-HA7-750ZB
Mark, fr. (typeb)
|
87124-HA7-750ZB |
— | ||
|
8
|
8
87126-HA7-750
Mark,r.instrument
|
87126-HA7-750 |
— | ||
|
9
|
9
87127-HA7-670
Mark,l.instrument
|
87127-HA7-670 |
— |
