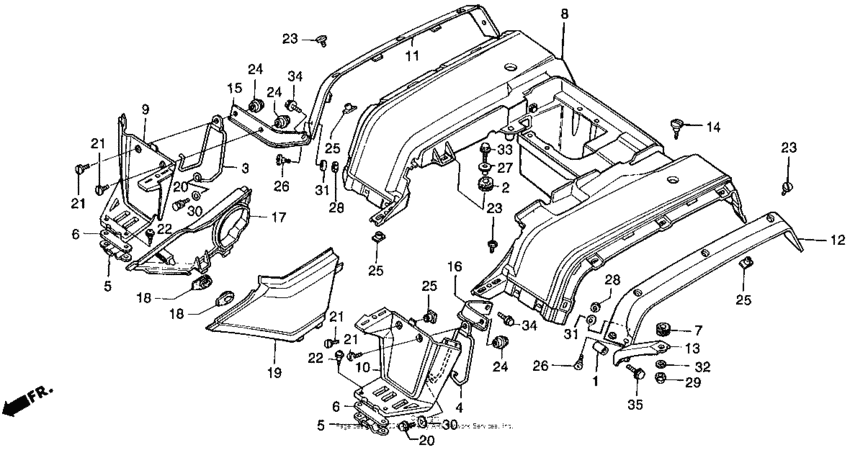

350d rear fender 89 Diagram Honda TRX 350 FourTrax Foreman 350
- Model code
- TRX350D
- Engine Capacity
- 329
- Year
- 1989
- Sales region
- USA
- Frame
- JH3TE071*KK200001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Big 4X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52486-074-000 Collar, cushion rubber bush (showa) |
52486-074-000 |
from US $2.37 |
||
|
2
|
2
66101-HA7-670 Grommet, fr. |
66101-HA7-670 |
from US $2.66 |
||
|
3
|
3
80123-HA7-832 Stay r,rr mud gua |
80123-HA7-832 |
US $53.38 |
||
|
4
|
4
80124-HA7-833 Stay l,rr mud guaUse up to Frame SN KK200587 |
80124-HA7-833 |
US $51.67 |
||
|
5
|
5
80127-HM5-850 Holder, mudguard |
80127-HM5-850 |
US $43.64 |
||
|
6
|
6
80128-HA7-830 Holder, mudguard |
80128-HA7-830 |
from US $3.85 |
||
|
7
|
7
80152-958-680 Rubber, rr. fender |
80152-958-680 |
from US $4.44 |
||
|
8
|
8
80210-HA7-741ZA
Fender comp*r109*
|
80210-HA7-741ZA |
— | ||
|
9
|
9
80211-HA7-831 Mud guard,rr foot |
80211-HA7-831 |
US $53.87 |
||
|
10
|
10
80212-HA7-831 Mud guard,rr foot |
80212-HA7-831 |
US $52.11 |
||
|
11
|
11
80213-HA7-830
Mudguard,r.rr.sid
|
80213-HA7-830 |
— | ||
|
12
|
12
80214-HA7-830 Mudguard,l.rr.sid |
80214-HA7-830 |
US $72.22 |
||
|
13
|
13
81302-HA7-670
Stay,rr.fender (b
|
81302-HA7-670 |
— | ||
|
14
|
14
81313-HA7-670
Bolt,fender set
|
81313-HA7-670 |
— | ||
|
15
|
15
81401-HA7-771
Stay r rr.fender
|
81401-HA7-771 |
— | ||
|
16
|
16
81402-HA7-880
Stay, l. rr. fender
|
81402-HA7-880 |
— | ||
|
17
|
17
83600-HA7-771ZA
Cover,r.sid*r109*
|
83600-HA7-771ZA |
— | ||
|
18
|
18
83615-HA7-670
Grommet,r side co
|
83615-HA7-670 |
— | ||
|
19
|
19
83700-HA7-671ZA
Cover,l.sid*r109*
|
83700-HA7-671ZA |
— | ||
|
20
|
20
90010-ML0-720 Bolt, flange (6x20) |
90010-ML0-720 |
from US $1.92 |
||
|
21
|
21
90102-HA7-672 Screw mudguard |
90102-HA7-672 |
US $4.03 |
||
|
22
|
22
90103-HC4-770 Screw, mudguard |
90103-HC4-770 |
from US $2.37 |
||
|
23
|
23
90120-HA7-670 Screw, mudguard |
90120-HA7-670 |
from US $7.31 |
||
|
24
|
24
90201-HA7-670
Nut,collar
|
90201-HA7-670 |
— | ||
|
25
|
25
90303-HA0-680 Nut, special (6x7) |
90303-HA0-680 |
from US $2.59 |
||
|
26
|
26
90380-MA6-010 Screw, special, 6x12 |
90380-MA6-010 |
from US $2.66 |
||
|
27
|
27
90504-KPS-900 Collar, battery box |
90504-KPS-900 |
from US $3.70 |
||
|
28
|
28
94001-060-800-S NutHEX., 6MM |
94001-060-800-S |
from US $0.44 |
||
|
29
|
29
94021-080-000-S NutCAP, 8MM |
94021-080-000-S |
from US $0.62 |
||
|
30
|
30
94103-06000 WasherPLAIN, 6MM |
94103-06000 |
from US $0.37 |
||
|
31
|
31
94103-06800 WasherPLAIN, 6MM |
94103-06800 |
from US $0.37 |
||
|
32
|
32
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
33
|
33
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
34
|
34
95701-080-140-8 BoltFLANGE, 8X14 |
95701-080-140-8 |
from US $0.62 |
||
|
35
|
35
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
