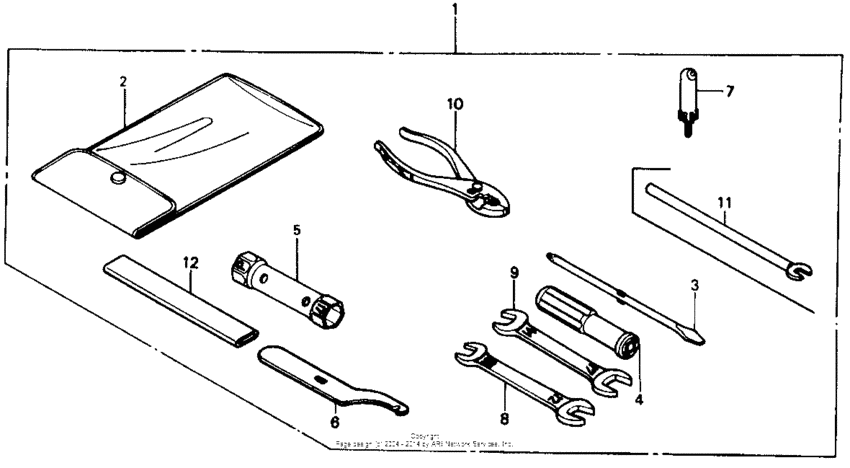

Tools Diagram Honda TRX 350 FourTrax Foreman 350
- Model code
- TRX350D
- Engine Capacity
- 329
- Year
- 1989
- Sales region
- USA
- Frame
- JH3TE071*KK200001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Big 4X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89010-HA7-650
Tool set
|
89010-HA7-650 |
— | ||
|
2
|
2
89101-965-003
Bag, tool (170)
|
89101-965-003 |
— | ||
| replacements | |||||
|
2
|
2
89101-ME5-670
Bag, tool
|
89101-ME5-670 |
— | ||
|
2
|
2
89101-MC7-000 Tool bag |
89101-MC7-000 |
from US $6.81 |
||
|
3
|
3
89102-538-000 Driver, SCREW(NO.2 + -) |
89102-538-000 |
from US $2.37 |
||
|
4
|
4
89103-538-000 Grip |
89103-538-000 |
US $6.78 |
||
|
5
|
5
89213-HA7-670 Wrench, box (p18x17) |
89213-HA7-670 |
US $18.11 |
||
|
6
|
6
89215-404-670 Wrench, pin |
89215-404-670 |
from US $10.46 |
||
|
7
|
7
89301-HA0-771 Gauge, tire pressure |
89301-HA0-771 |
from US $35.63 |
||
|
7
|
7
89301-HA0-772 Gauge, tire pressure |
89301-HA0-772 |
from US $32.10 |
||
|
8
|
8
9900108120 Spanner, 8x12 |
9900108120 |
from US $3.11 |
||
|
9
|
9
9900110140 Spanner, 10x14 |
9900110140 |
from US $3.55 |
||
|
10
|
10
89210-GBJ-J10 Pliers, 135 (kowa) |
89210-GBJ-J10 |
from US $8.88 |
||
|
10
|
10
99002-13500
Pliers
|
99002-13500 |
— | ||
| replacement | |||||
|
10
|
10
89210-GBJ-J10 Pliers, 135 (kowa) |
89210-GBJ-J10 |
from US $8.88 |
||
|
12
|
12
99006-12000 Handle (12mm) |
99006-12000 |
from US $4.29 |
||
