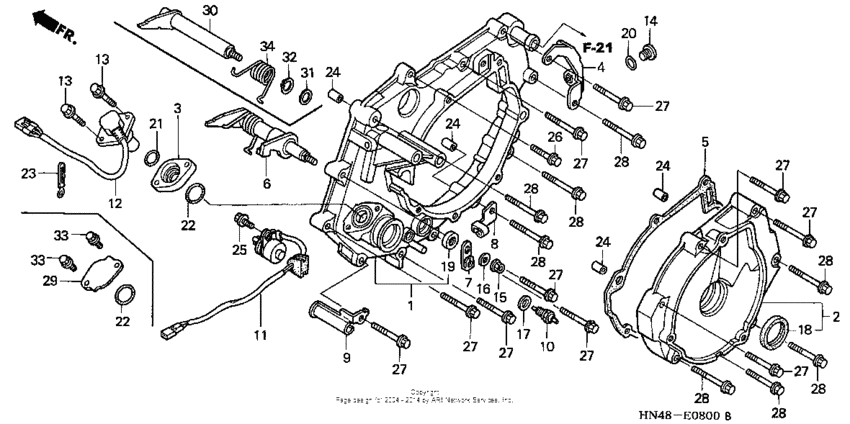

Rear crankcase cover Diagram Honda TRX 350 Rancher 350
- Model code
- TRX350FM
- Engine Capacity
- 329
- Year
- 2004
- Sales region
- USA
- Frame
- 478TE250*4A400001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Rancher 350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11340-HN5-M00 Cover, rr. crankcase |
11340-HN5-M00 |
from US $182.10 |
||
|
2
|
2
11350-HN5-670 Cover, alternator |
11350-HN5-670 |
from US $66.22 |
||
|
4
|
4
11370-HN5-670 Stay, r. rr. |
11370-HN5-670 |
US $6.58 |
||
|
5
|
5
11396-HN5-670 Gasket |
11396-HN5-670 |
from US $5.27 |
||
|
7
|
7
24865-HN5-670 Lever |
24865-HN5-670 |
from US $4.09 |
||
|
8
|
8
24871-HN5-670 Holder |
24871-HN5-670 |
US $8.93 |
||
|
9
|
9
32855-HN5-670 Clamp |
32855-HN5-670 |
from US $3.72 |
||
|
11
|
11
35759-HN4-M01 Switch assy., change |
35759-HN4-M01 |
US $72.42 |
||
|
14
|
14
90084-KY2-000 Cap (14mm) |
90084-KY2-000 |
from US $7.70 |
||
|
15
|
15
90301-473-003 Nut, u, 6mm |
90301-473-003 |
from US $4.74 |
||
|
16
|
16
90545-044-000 Washer, crank arm |
90545-044-000 |
from US $2.81 |
||
|
18
|
18
91201-HN5-671 Oil seal (24x34x7) |
91201-HN5-671 |
from US $9.57 |
||
|
19
|
19
91201-965-000 Oil seal (12x22x5) |
91201-965-000 |
from US $2.68 |
||
|
20
|
20
91303-377-000 O-ring, 13.8x2.5 |
91303-377-000 |
from US $5.49 |
||
|
22
|
22
91307-PY4-003 O-ring24.5X1.9 |
91307-PY4-003 |
from US $1.33 |
||
|
24
|
24
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
25
|
25
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
||
|
26
|
26
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
||
|
27
|
27
95701-0603500 Bolt, flange, 6x35 |
95701-0603500 |
from US $0.59 |
||
|
28
|
28
95701-060-450-7 BoltFLANGE, 6X45 |
95701-060-450-7 |
from US $0.74 |
||
|
29
|
29
11356-HN5-M00 Cap, speed sensor |
11356-HN5-M00 |
from US $2.64 |
||
|
30
|
30
24860-HN5-M00 Plate a |
24860-HN5-M00 |
from US $15.25 |
||
|
31
|
31
90452-166-600 Washer, thrust, 12mm |
90452-166-600 |
from US $2.44 |
||
|
32
|
32
94510-12000 CirclipEXTERNAL, 12MM |
94510-12000 |
from US $0.44 |
||
|
33
|
33
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
||
|
34
|
34
24867-HN5-670 Spring |
24867-HN5-670 |
US $3.13 |
