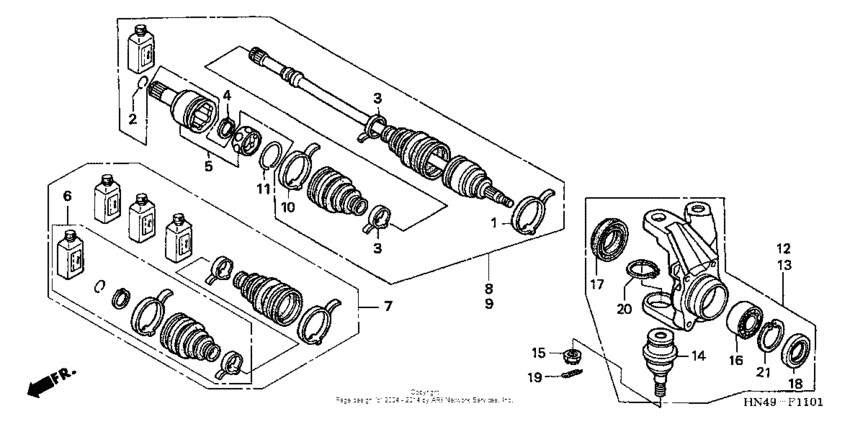

Knuckle (4wd) Diagram Honda TRX 350 Rancher 350
- Model code
- TRX350FM
- Engine Capacity
- 329
- Year
- 2006
- Sales region
- USA
- Frame
- 1HFTE250*64500001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Rancher 350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42204-HC5-003 Band a |
42204-HC5-003 |
from US $9.55 |
||
|
2
|
2
42206-HA7-671 RingSNAP |
42206-HA7-671 |
from US $1.53 |
||
|
3
|
3
42206-HC5-003 Band c |
42206-HC5-003 |
from US $7.49 |
||
|
4
|
4
42209-HC5-003 Circlip |
42209-HC5-003 |
from US $1.26 |
||
|
5
|
5
42220-HN5-N01 Joint, inboard |
42220-HN5-N01 |
US $186.22 |
||
|
6
|
6
42230-HN5-N00 Boot set, inboard |
42230-HN5-N00 |
US $53.30 |
||
|
7
|
7
42240-HN5-N00 Boot set |
42240-HN5-N00 |
US $88.62 |
||
|
8
|
8
42250-HN5-N00 Shaft set, r. |
42250-HN5-N00 |
US $362.53 |
||
|
9
|
9
42350-HN5-N00 Shaft set, l. |
42350-HN5-N00 |
US $116.31 |
||
|
10
|
10
44205-HN8-A41 Band b, inboard |
44205-HN8-A41 |
US $9.57 |
||
|
11
|
11
44207-HN8-A41 Ring, snap |
44207-HN8-A41 |
US $9.57 |
||
|
12
|
12
51200-HN5-670 Knuckle assy., r. |
51200-HN5-670 |
US $717.50 |
||
|
13
|
13
51250-HN5-670 Knuckle assy., l. |
51250-HN5-670 |
US $744.45 |
||
|
14
|
14
51355-HP5-601 Joint a, arm ball |
51355-HP5-601 |
from US $21.80 |
||
|
15
|
15
90310-HB9-000 Nut, castle (12mm) |
90310-HB9-000 |
from US $3.63 |
||
|
16
|
16
91051-HC5-003 Bearing (30x50x20) |
91051-HC5-003 |
from US $64.06 |
||
|
17
|
17
91209-HN5-671 Dust seal (40x58x9) |
91209-HN5-671 |
from US $11.69 |
||
|
18
|
18
91256-HC5-003 Dust seal (38x50x7) |
91256-HC5-003 |
from US $8.70 |
||
|
19
|
19
94201-30180 PinSPLIT, 3.0X18 |
94201-30180 |
from US $0.37 |
||
|
20
|
20
9451432000 Circlip (32mm) |
9451432000 |
from US $0.81 |
||
|
21
|
21
9452050000 Circlip, internal, 50mm |
9452050000 |
from US $1.48 |
