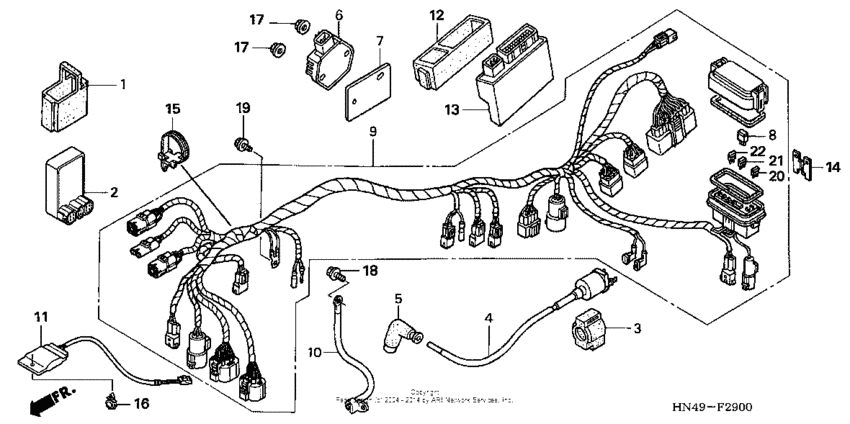

Wire harness Diagram Honda TRX 350 Rancher 350
- Model code
- TRX350FM
- Engine Capacity
- 329
- Year
- 2006
- Sales region
- USA
- Frame
- 1HFTE250*64500001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Rancher 350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30401-HA7-670 Cushion, c.d.i. unit |
30401-HA7-670 |
from US $9.92 |
||
|
2
|
2
30410-HN5-N01 Module, ign cont |
30410-HN5-N01 |
US $125.66 |
||
|
3
|
3
30506-KV3-771 Suspension, ignition coil |
30506-KV3-771 |
from US $4.68 |
||
|
4
|
4
30510-KJ2-405 Coil, ignition |
30510-KJ2-405 |
from US $58.34 |
||
|
5
|
5
30700-MA0-163 Cap assy. |
30700-MA0-163 |
from US $24.71 |
||
|
6
|
6
31600-HN5-M40 Rectifier, regulator |
31600-HN5-M40 |
from US $81.43 |
||
|
7
|
7
31601-HN5-M40 Plate |
31601-HN5-M40 |
US $2.96 |
||
|
8
|
8
31730-MAS-601 Diode assy., three way (sumitomo) |
31730-MAS-601 |
from US $11.23 |
||
|
9
|
9
32100-HN5-N00 Wire harness |
32100-HN5-N00 |
US $291.94 |
||
|
10
|
10
32603-HN5-M40 Cable, frame ground |
32603-HN5-M40 |
US $15.44 |
||
|
14
|
14
50328-HN2-000 Stay, fuse connector |
50328-HN2-000 |
US $2.02 |
||
|
15
|
15
90649-SC2-003 BandWIRE HARNESS (NATURAL) (150MM) |
90649-SC2-003 |
from US $2.73 |
||
|
17
|
17
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
18
|
18
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
19
|
19
96001-060-100-0 BoltFLANGE, 6X10 |
96001-060-100-0 |
from US $0.59 |
||
|
20
|
20
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
21
|
21
98200-41500 FuseMINI(15A) |
98200-41500 |
from US $0.52 |
||
|
22
|
22
98200-43000 FuseMINI (30A) |
98200-43000 |
from US $0.74 |
