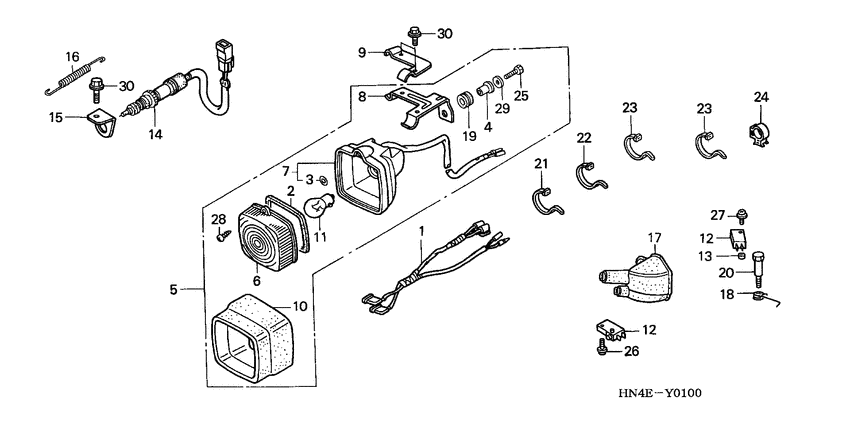

Stop light set Diagram Honda TRX 350 FourTrax 350
- Model code
- TRX350FM
- Engine Capacity
- 329
- Year
- 2003
- Sales region
- Canada
- Frame
- 478TE252*3A300001 - 478TE252*3A399999
- Engine
- TE25E8500001 - TE25E8599999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- FourTrax 350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32105-HM8-C90
Sub cord,fr stop
|
32105-HM8-C90 |
— | ||
|
2
|
2
33407-166-611 Gasket |
33407-166-611 |
from US $4.14 |
||
|
3
|
3
33408-166-611 Seal, gasket |
33408-166-611 |
from US $2.59 |
||
|
4
|
4
33715-MC4-610 Collar |
33715-MC4-610 |
from US $2.66 |
||
|
5
|
5
33810-HN5-741
Light assy,stop
|
33810-HN5-741 |
— | ||
|
6
|
6
33812-HF1-830 Lens, stop light |
33812-HF1-830 |
from US $8.47 |
||
|
7
|
7
33813-HN5-740
Base comp.
|
33813-HN5-740 |
— | ||
|
8
|
8
33815-HN5-740
Stay
|
33815-HN5-740 |
— | ||
|
9
|
9
33816-HN5-740 Holder,stoplight |
33816-HN5-740 |
US $9.39 |
||
|
10
|
10
33850-HF1-831 Rubber |
33850-HF1-831 |
US $13.26 |
||
|
11
|
11
34905-KN8-003 Bulb (12v21cp) |
34905-KN8-003 |
from US $2.96 |
||
|
12
|
12
35340-ML4-005 Switch assy., fr. stop (tateishi) |
35340-ML4-005 |
from US $13.91 |
||
| replacement | |||||
|
12
|
12
35340-HR0-305 Switch, fr. stop |
35340-HR0-305 |
US $22.98 |
||
|
13
|
13
35345-HF1-830 Collar, stop switch |
35345-HF1-830 |
from US $3.18 |
||
|
14
|
14
35350-HN5-741
Sw assy,rear stop
|
35350-HN5-741 |
— | ||
|
15
|
15
35351-HN5-740
Stay,stop switch
|
35351-HN5-740 |
— | ||
|
16
|
16
43151-GC4-000 Spring, brake shoe |
43151-GC4-000 |
from US $3.63 |
||
|
17
|
17
53177-HF1-830
Cover, l. handlebar
|
53177-HF1-830 |
— | ||
|
18
|
18
53193-HF1-830 Spring, lever return |
53193-HF1-830 |
from US $3.85 |
||
|
18
|
18
53193-HN5-C20 Spring |
53193-HN5-C20 |
US $4.91 |
||
|
19
|
19
80101-283-000 Rubber, rr. fender cushion |
80101-283-000 |
from US $4.29 |
||
|
20
|
20
90114-HM8-000 Bolt |
90114-HM8-000 |
US $10.27 |
||
|
21
|
21
90650-KV6-003 BandWIRE, 95MM |
90650-KV6-003 |
from US $3.03 |
||
|
22
|
22
90650-MA6-720 Band.harness |
90650-MA6-720 |
from US $2.89 |
||
|
23
|
23
90652-KT1-771 Band, wire (black) |
90652-KT1-771 |
from US $2.29 |
||
|
24
|
24
90690-GHB-651 Clip, cable, 15mm |
90690-GHB-651 |
from US $1.78 |
||
|
25
|
25
92101-05020-0A Bolt, hex., 5x20 |
92101-05020-0A |
from US $0.38 |
||
|
26
|
26
93893-040-140-7 Screw-washer4X14 |
93893-040-140-7 |
from US $0.52 |
||
|
27
|
27
93893-0402007 Screw-washer, 4x20 |
93893-0402007 |
from US $0.55 |
||
|
28
|
28
93901-14480 ScrewTAPPING, 4X16 |
93901-14480 |
US $0.37 |
||
|
29
|
29
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
30
|
30
95701-060-120-7 BoltFLANGE, 6X12 |
95701-060-120-7 |
from US $0.52 |
||
