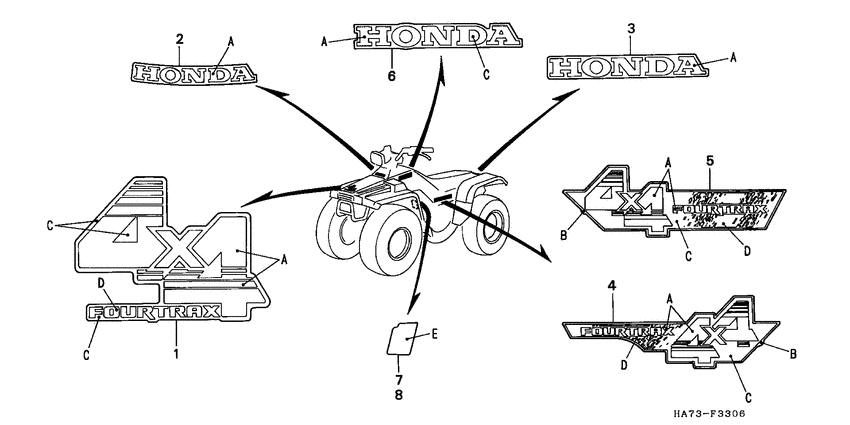

Stripe (7) (TRX350N) Diagram Honda TRX 350 FourTrax 350
- Model code
- TRX350
- Engine Capacity
- 329
- Year
- 1992
- Sales region
- Canada
- Frame
- JH3TE072*NM500001 - JH3TE072*NM503700
- Engine
- TE07E8502027 - TE07E9999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- FourTrax 350
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87115-HA7-900
Mark,fr.fender
|
87115-HA7-900 |
— | ||
|
2
|
2
87118-HA7-690
Mark,upper cover
|
87118-HA7-690 |
— | ||
|
3
|
3
87120-HA7-650
Mark,tool box lid
|
87120-HA7-650 |
— | ||
|
4
|
4
87121-HA7-900
Stripe,r.side cov
|
87121-HA7-900 |
— | ||
|
5
|
5
87123-HA7-900
Stripe,l.side cov
|
87123-HA7-900 |
— | ||
|
6
|
6
87124-HA7-900
Mark,fr.fender si
|
87124-HA7-900 |
— | ||
|
7
|
7
87126-HA7-670 Mark,r.instrument |
87126-HA7-670 |
US $13.11 |
||
|
8
|
8
87127-HA7-670
Mark,l.instrument
|
87127-HA7-670 |
— |
